CAP1000  &  CAP1250  Workclamps

&  Workclamp Repair-Parts

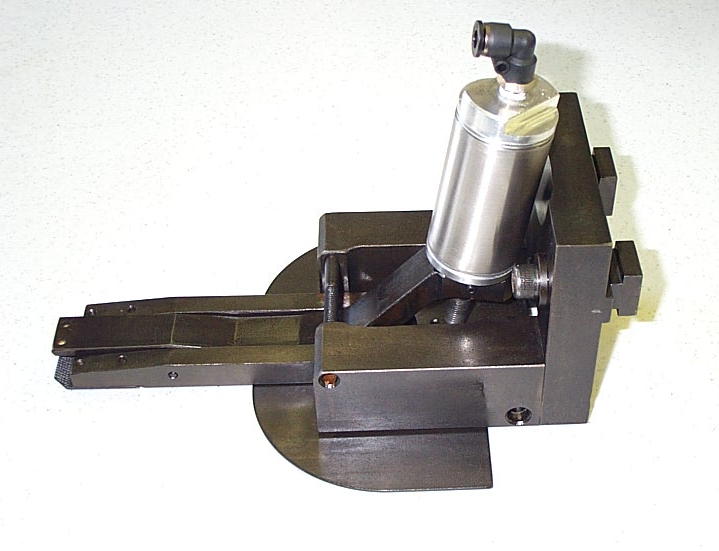

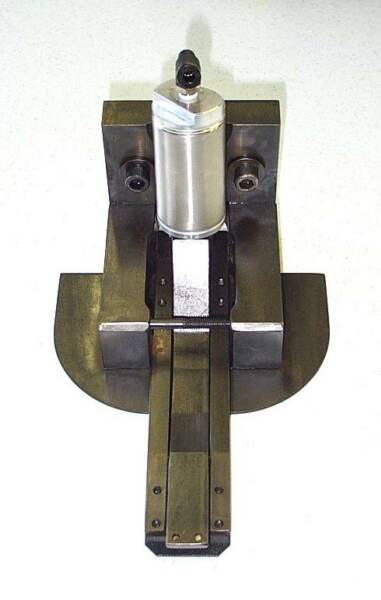

Above are 2 Views of Our New Workclamps for the

following  Di-Acro  &  Strippit Punch Machines.

  ---  CAP1000

  ---  CAP1250

  ---  HPM1000

  ---  QCT-20

We can Supply You with  Brand-New Workclamps,

or  We Can Supply You with

Repair Parts  to  Fix Your Workclamps.

At Right,

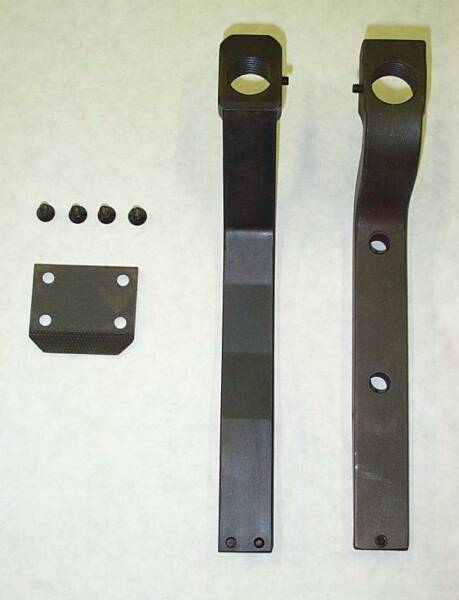

are 3 of the

Most Common

Repair Parts;

Item #8

Lower-Jaw  with

4  Mounting Screws

Item #5, Upper-Jaw

with 2 Carbide-Teeth,

which Holds Sheets Much Better than

Original

Set-ScrewType

Item #5,  Original

Set-Screw

In-The-Middle

Type Upper-Jaw

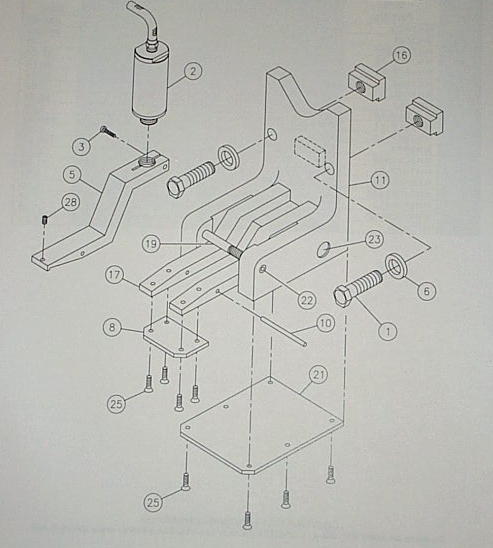

Other Repair Parts;

1   -- Mounting Screw

2   -- Air Cylinder

5   -- Upper Jaw.

       Our Upper-Jaws have

       Carbide-Teeth

       to  Grip 3 Times better!

8   -- Lower Jaw

10 -- Pivot Pin

11 -- Holder Mount

16 -- Mounting T-Nut

17 -- Clamp Body

19 -- 1/4-20x2-3/4" Cap-Screw

21 -- Actuator Plate

22 -- 1/4-20x1/4" Set-Screw

23 -- Dowel Pin

This page was last updated: February 10, 2023

Workclamp  Clamp-Body  Types.

Most CAP1000 & CAP1250 Workclamps use  #120531-000  Type Clamp-Body,

But Please Measure Your Clamp-Body  to  Order The Correct Type!!!

#120531-000     Early-Type  Clamp-Body,

                        Back of Body  to  Center of Rear Holes is  about  1.660 Inches.

#120531-Mod   Later-Type  Clamp-Body,

                        Back of Body  to  Center of Rear Holes is  about  1.793 Inches.
