Strippit Machines & Tooling

For Sale !

This Page is for Strippit Machines that Machine Technologies Co. & Associates have For-Sale.

And for Our Customers to List Strippit Machines that They Want to Buy & Sell.

Please Call for Information on Listing Your Machine "FOR SALE" Here!

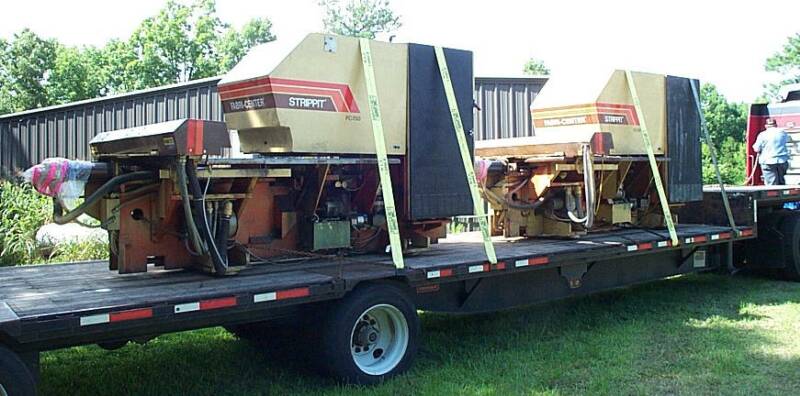

Machine Technologies is pleased to offer this Strippit FC750,

which has been Rebuilt in our Own Shop. A brief Summery of its Specifications;

--- Very Compact Machine!

Frame, Table, and CNC Control are all in 1-Piece measuring only 7' x 14'

--- No Special Foundation is Needed!

Just Set on your floor, and level the 4 corners.

--- 22 Ton Punching-Capacity, up to 10 gage Steel

--- 20 Station Turret,

1 -- 2"x2" Notch-Station, 3 -- 3 1/2" Stations, 16 -- 1 1/4" Stations

--- 2000 inch per minute table movement speed

--- 180 Punches per minute on 1 inch centerlines

--- Also can Contour-Nibbles

Large Circles, Curves, and Angles at 390 punches per minute!

--- Sheet Size is 30" x 40" , can handle sheets up to 38" x 100"

with Progressive-Move & Short-Workclamps

--- Control is HECC80 with 24K of memory,

Interfaced to a P.C. Computer for Downloading Part-Program files

--- Control alphanumeric readout Display shows X & Y Axis Table-Positions,

Turret-Position, Part-Program Code, Normal & Abnormal Machine Status

--- Will run on 240 / 480 3-Phase Power,

or I can set-up for Single-Phase 240 volts for you Small Garage Shops

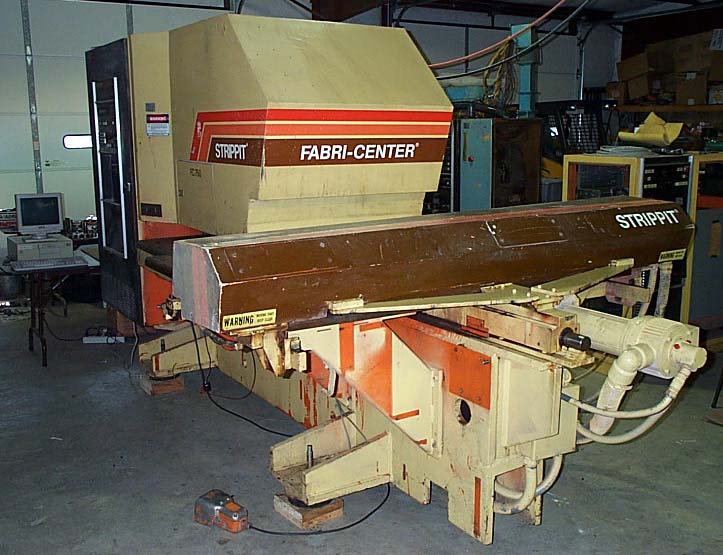

Strippit FC750 CNC Turret Punch Machine

This page was last updated on: August 29, 2010

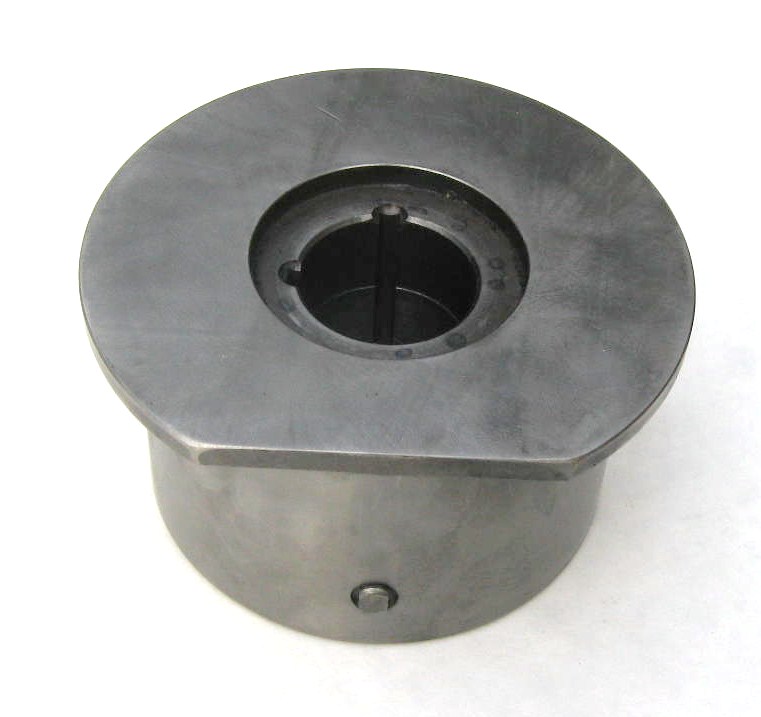

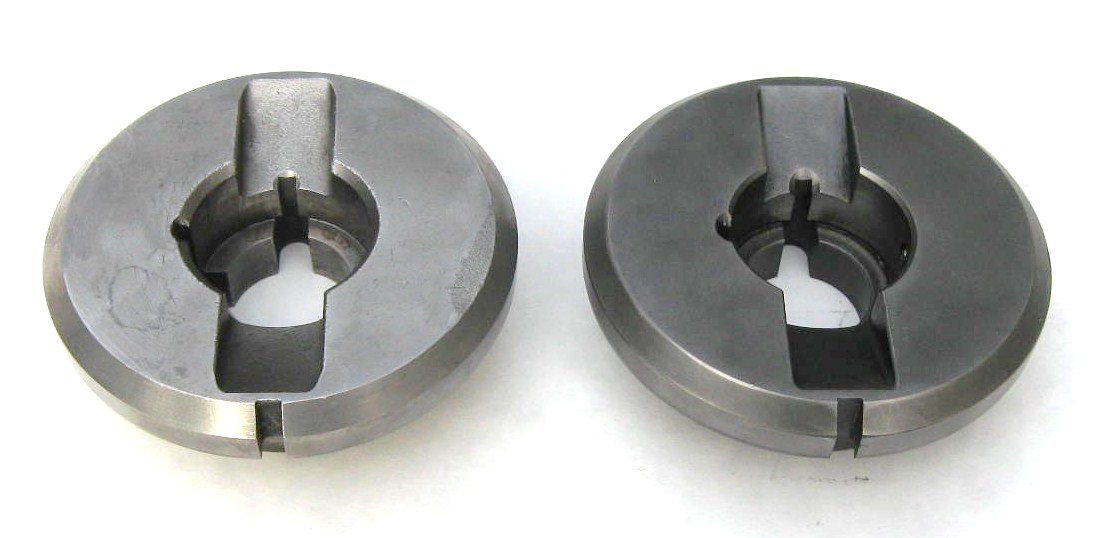

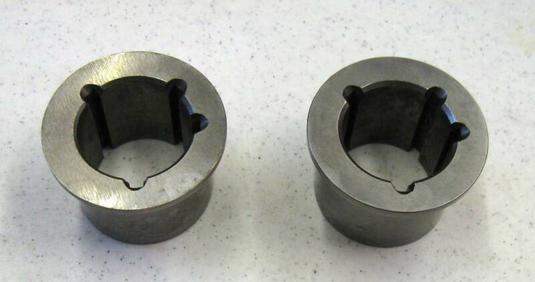

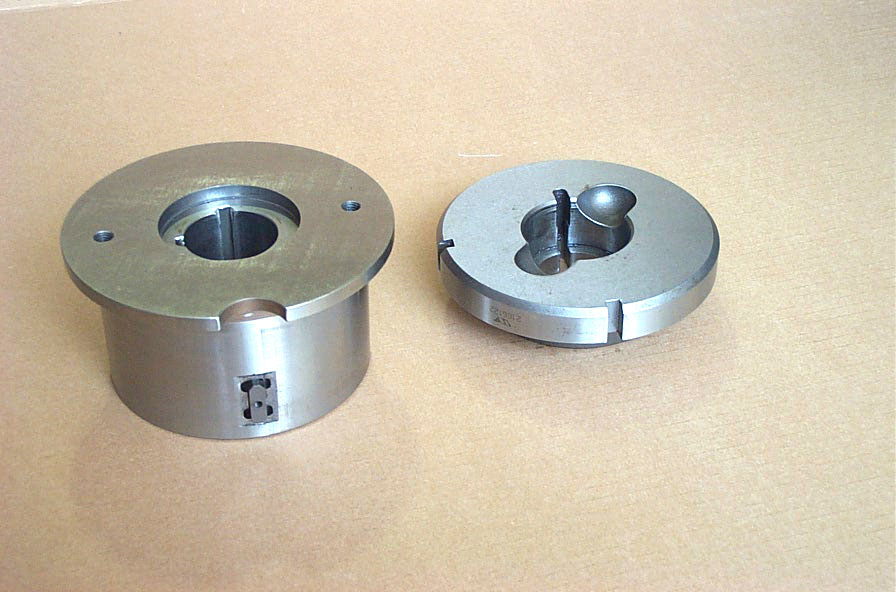

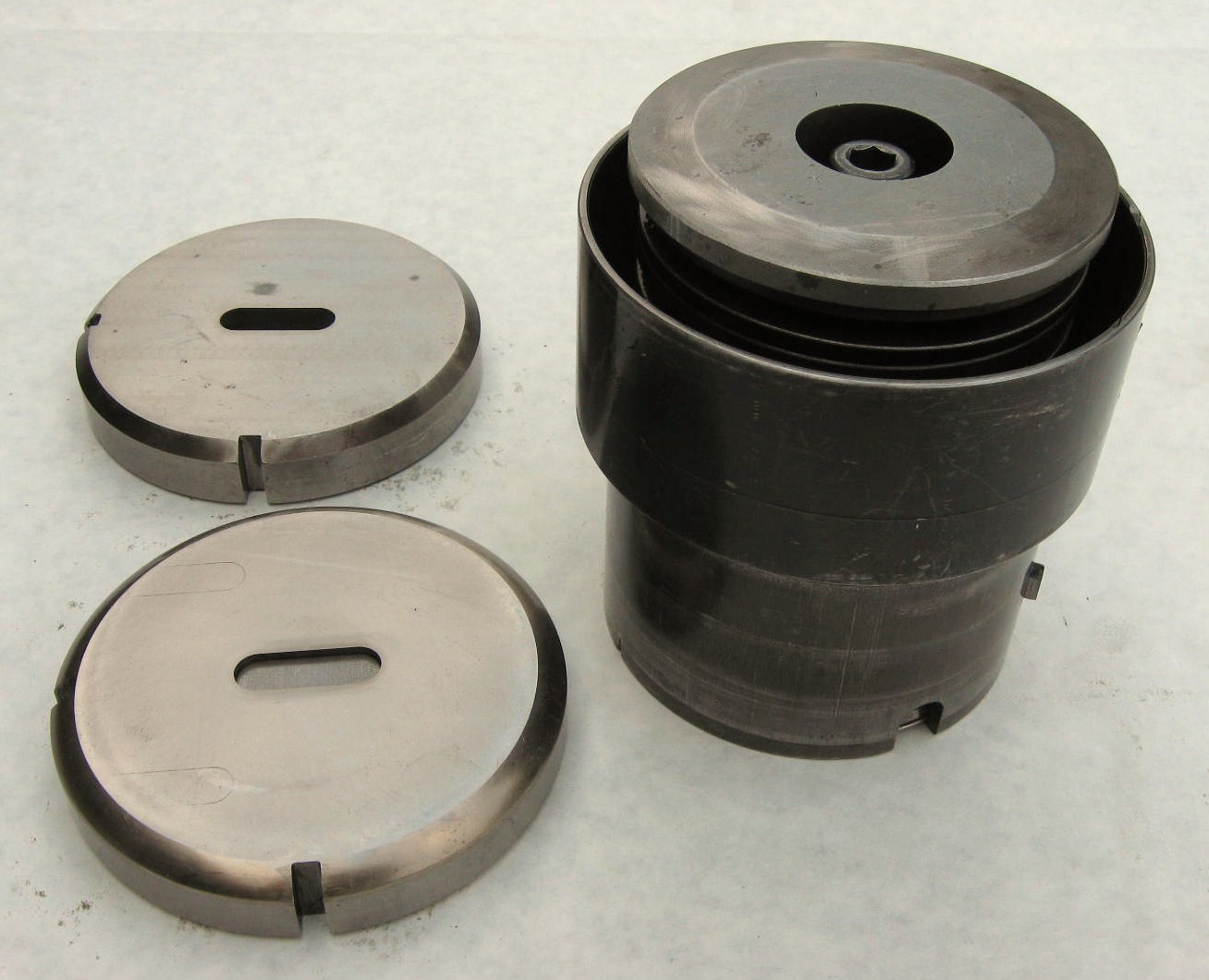

3 1/2" to 1 1/4"

Punch & Die Adaptor Set.

These are used in Turrets to

put 1 1/4" Tools

in 3 1/2" Stations,

Usually the

Auto-Index Stations.

These are Wilson

#10058 and #10059 Parts

as are Shown in their

Tooling Catalog.

This is the solution for those older machines without Auto-Index stations.

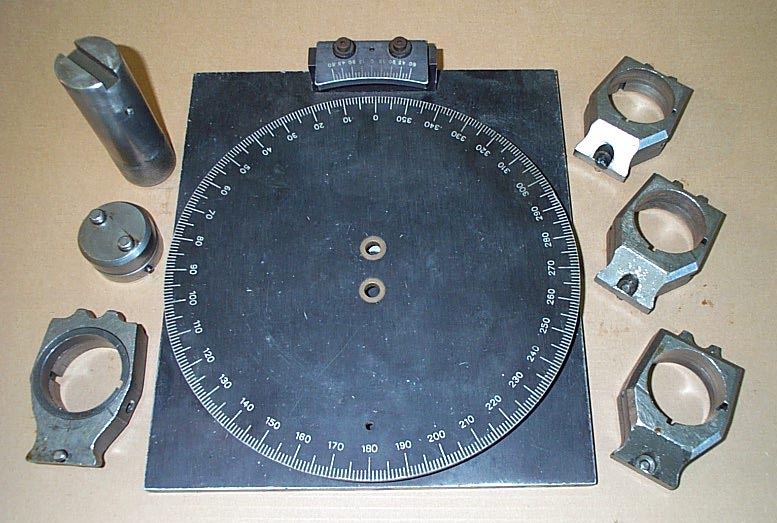

4 Strippit #200300-100 1 1/4" Indexable die bases, #200596-000 Accudex Index fixture, and #200293-000 1 1/4" Alignment tool-set.

There is a index-ring on bottom of each die base. You set it to degree you want with fixture, then using alignment tool, set the upper turret bushing to match.

New prices for all this was over $3500 from Strippit. Take it all for $700.00!

Please Click-On Button to the Left

to go to Next-Page with

More Strippit Machines & Tooling for Sale!

Strippit 2" x 2" Notch-Punch Holder as was used in Station #1 on most older Strippit Machines. We Have Several Available at $650.00 Each

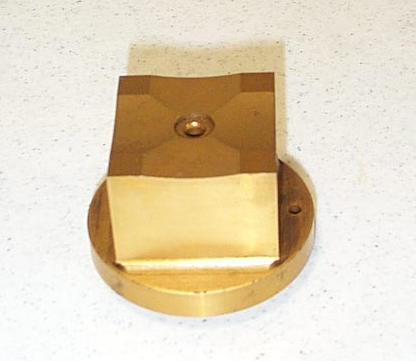

We have Brand-New, and Used, 2x2" Punch Tips Like Below for the #1 Notch Station.

And, we have some 2"x2" New & Used Dies, in several different Clearances.

Strippit Machine & Control Repair Parts

Strippit HECC80 CNC Machine Service

Phone 704-233-5229

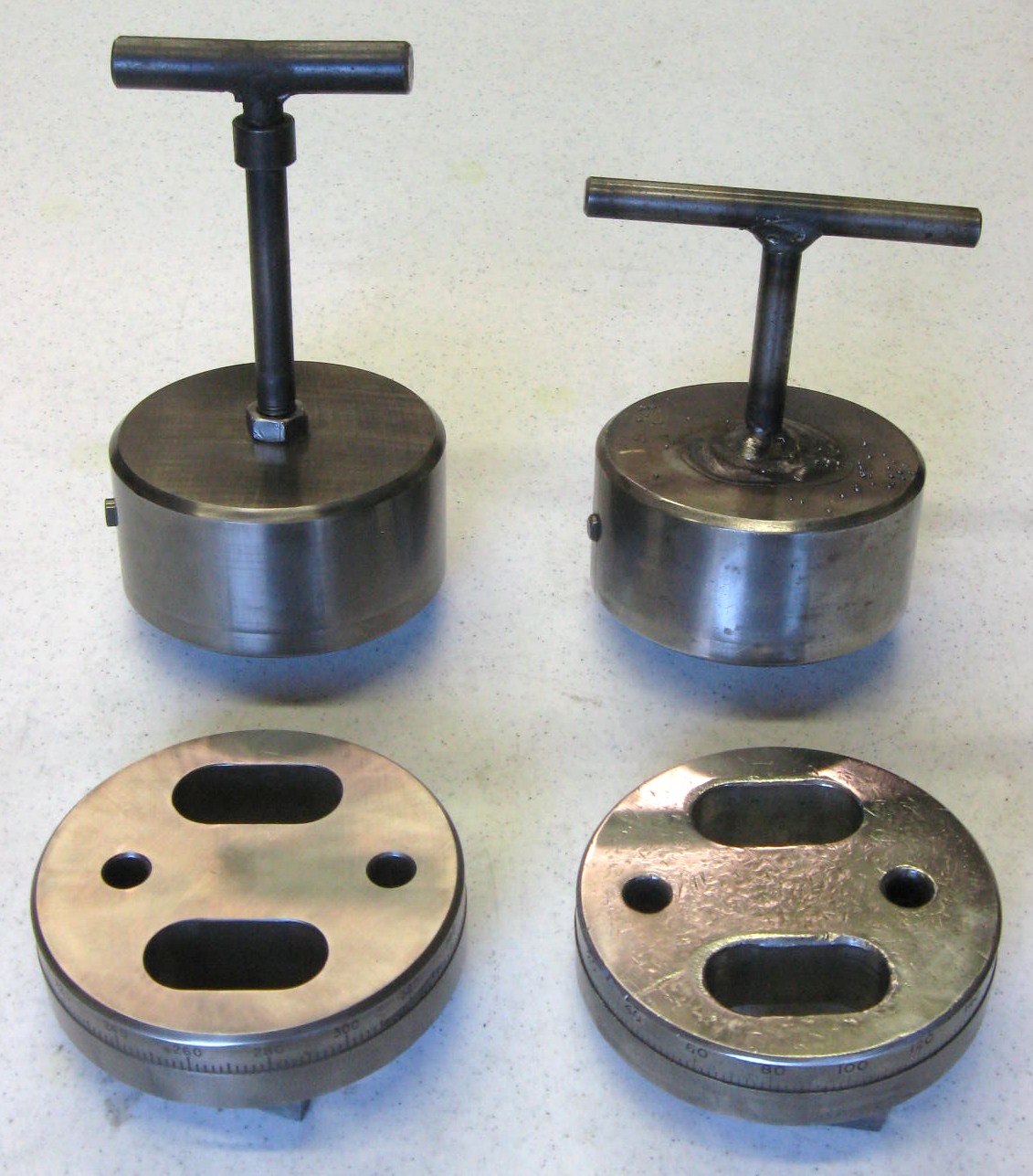

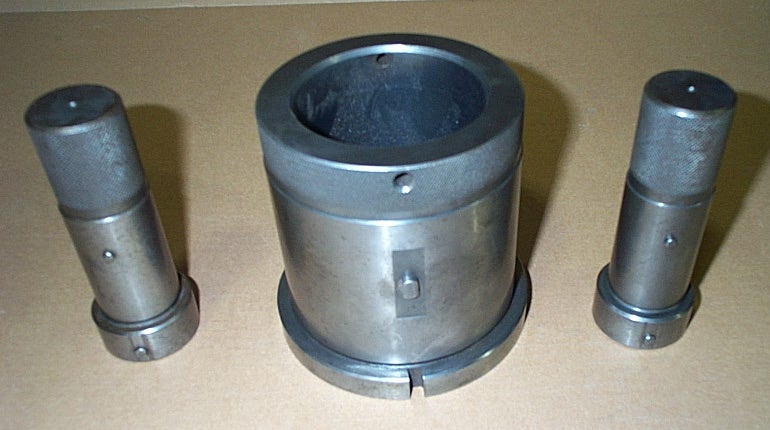

A Nice Set of

1 1/4" & 3 1/2"

Alignment Tools

for

Strippit Thin-Turret

Type Tooled

Turret CNC Machines.

Tools are in Like-New

Condition!

This Set of 4-Tools Cost $1500 New,

They are Available for

$950.00 for the Set

A Unique Set of Tools.

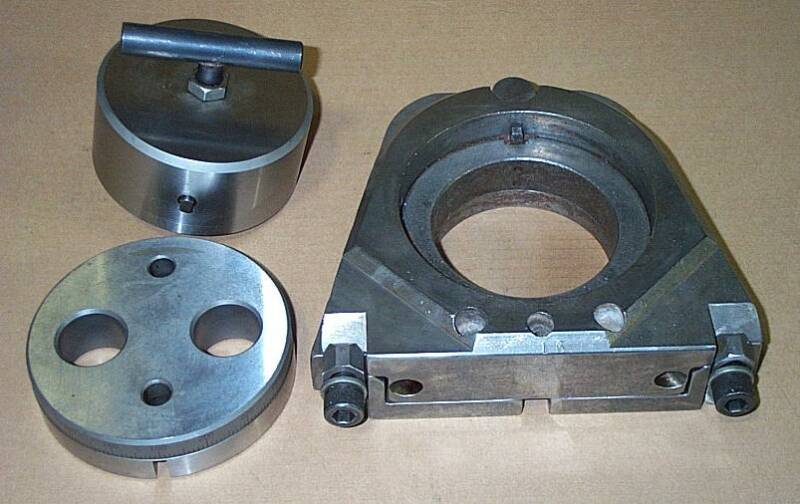

We have a Brand-New Strippit, and Very Rare, #90692-000 Index Line-Up Tool.

This can be used to Line-Up a Tool Station,

and also Set-Up a Indexable Die Base, as It is Etched in Degree Increments!

And a Good Used #90698-000 Indexable 3 1/2" Die Base. This is How we Set Punch & Dies to Angles on Machines without Auto-Index. We have More of these Bases Available.

These are used on following Strippit Machines; T-SAF, FC75/30, FC750, FC1000/1, FC1000/2, FC1000/3, FC1250/30/1500, FC1250/45, 630R, and 1000R.

Line-Up Tool Cost $1600 New & Die-Base $3500 New.

Take Both for $900.00 !!!

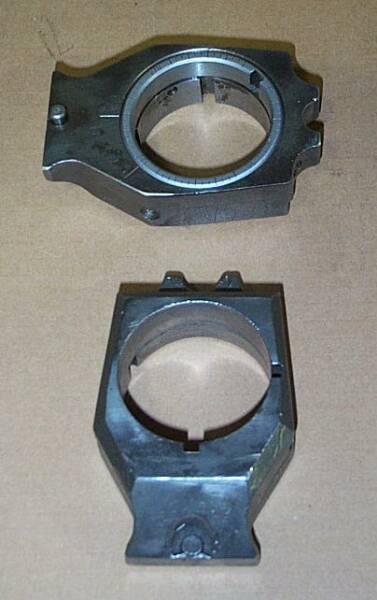

Strippit

#200293-000 Index-Tool Set.

This can be used to Index

(Degree Line-Up) a Turret Bushing to Match a Standard or Indexable Die Base. $185.00

Also Shown is a #200300-100

Indexable 1 1/4" Die Base.

This is How we Set Punch & Dies to Angles on Older Machines without Auto-Index.

These are used on following Strippit Machines;

T-SAF, FC75/30, FC750, FC750/2, FC1000/1, FC1000/2, FC1000/3, FC1250/30/1500, FC1250/45, 630R, and 1000R.

Good Used #200300-000

Indexable 1 1/4" Die Base.

These Are the Better -000 Versions

that are Etched with Degrees.

The -100 Version

does Not have Degree Etching.

This is How we Set Punch & Dies to Angles on Machines without Auto-Index.

These are used on following Strippit Machines; T-SAF, FC75/30, FC750, FC750/2, FC1000/1, FC1000/2, FC1000/3, FC1250/30/1500, FC1250/45, 630R, and 1000R.

These Cost $534.00 Each New,

BUT

I have these Last 3 Available

at only $220 each.

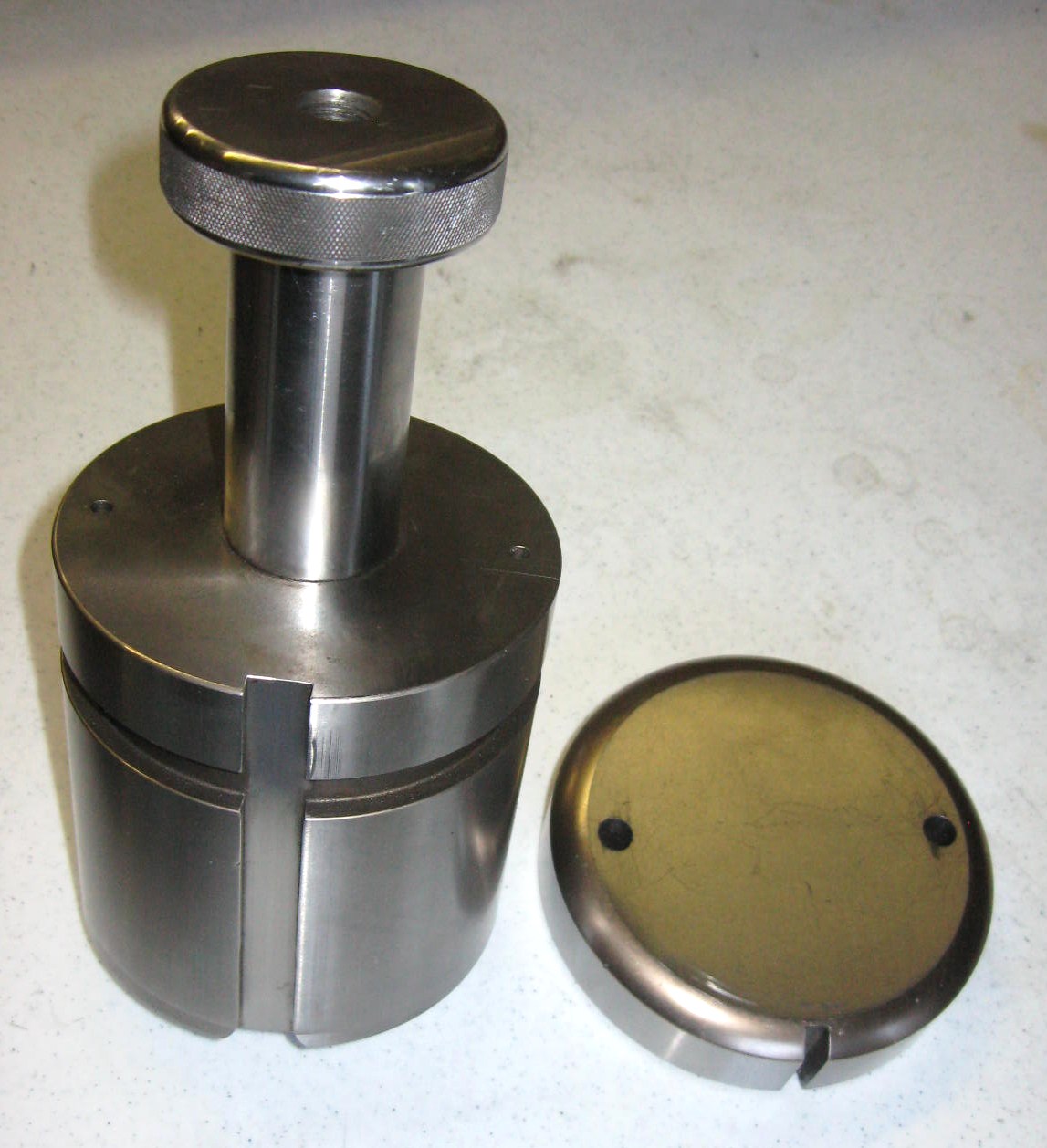

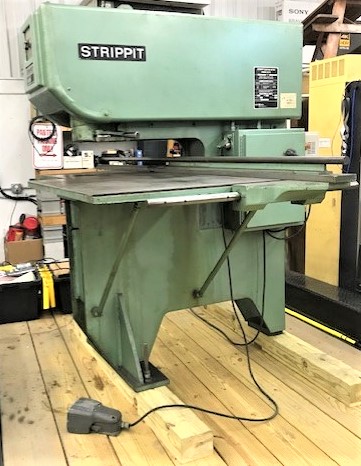

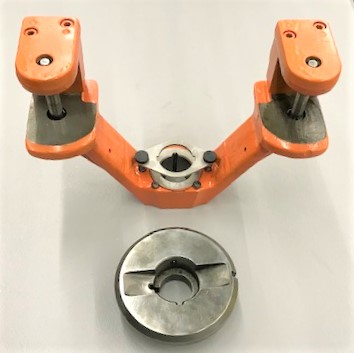

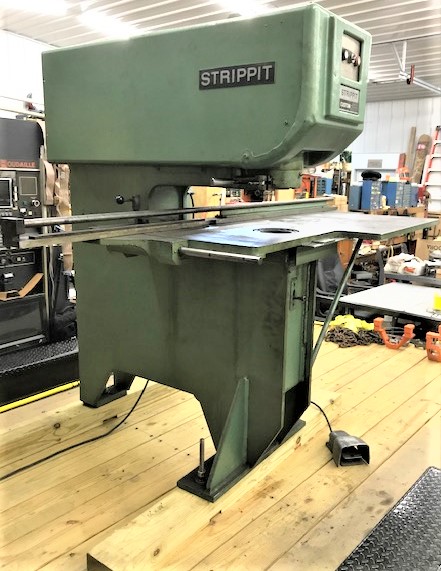

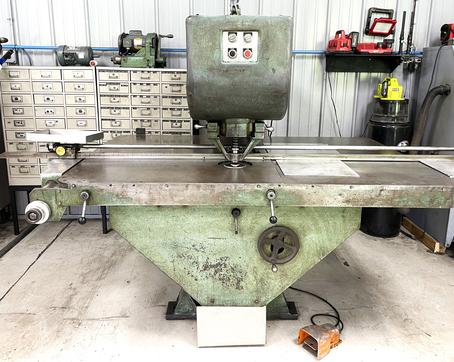

Line-Up Tools for Single-Station Strippit Machines, Like Custom 18/30's & Super 30/30's.

We have 1 Strippit #85908-000 3 1/2" Tool @ Sold

And 1 Strippit #200292-000 1 1/4" Tool @ $195.00

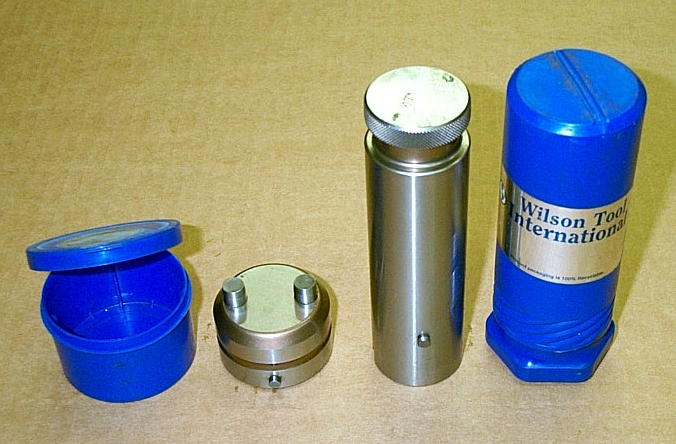

New

Wilson

1 1/4"

Align-Tool Set!

Very Nice

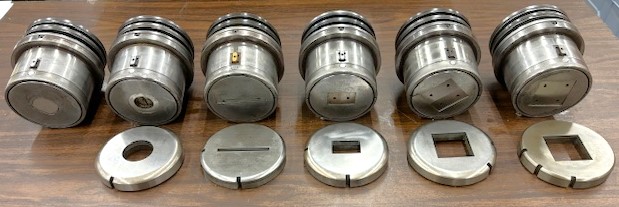

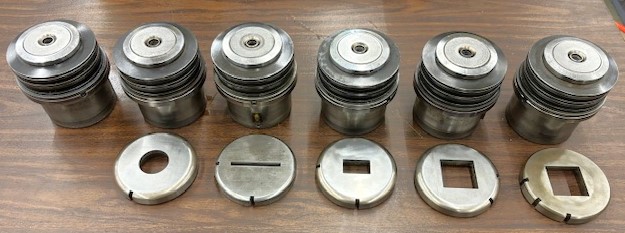

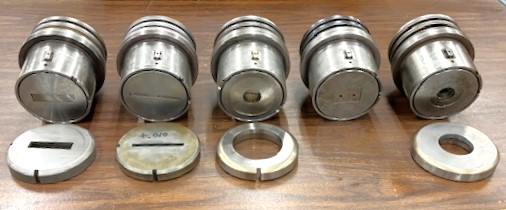

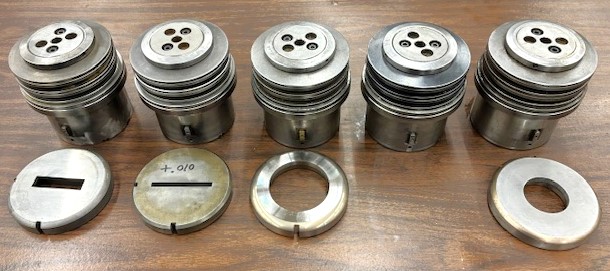

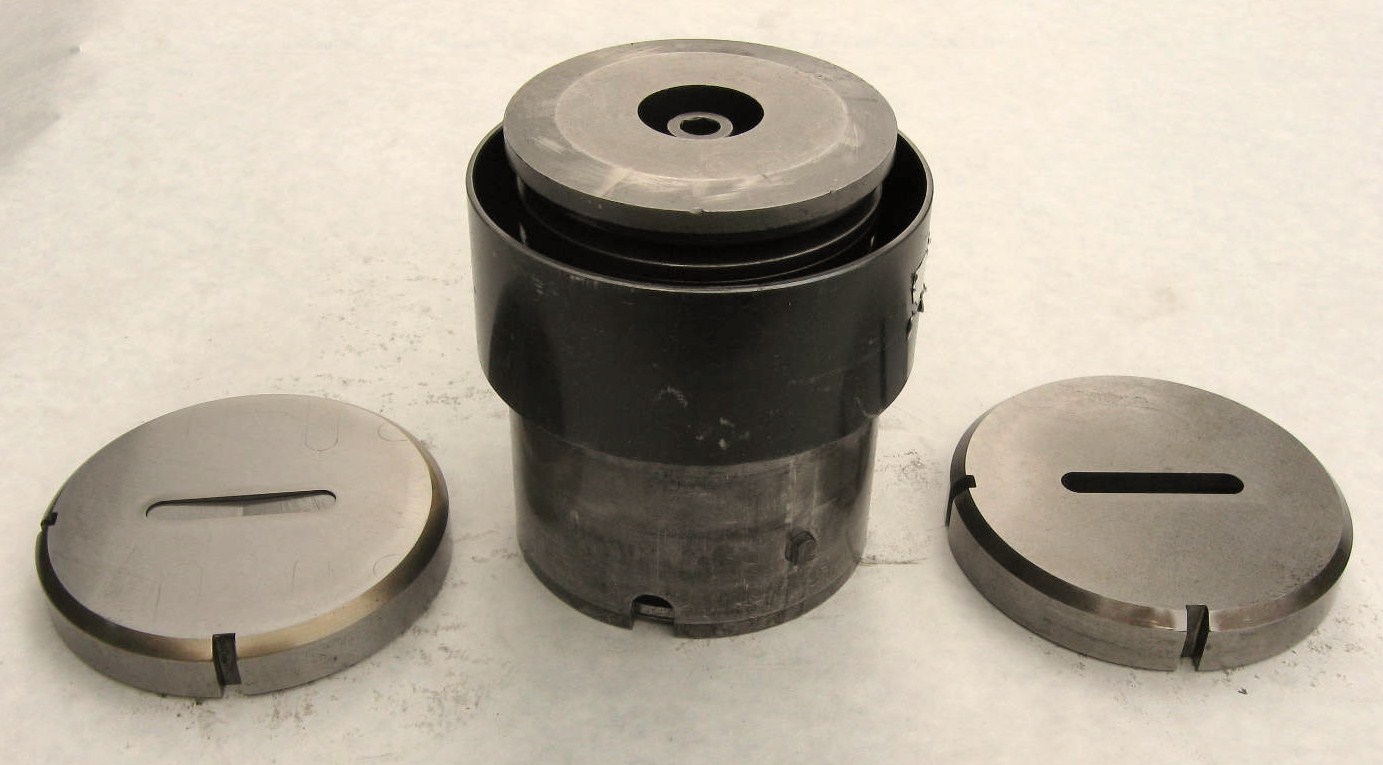

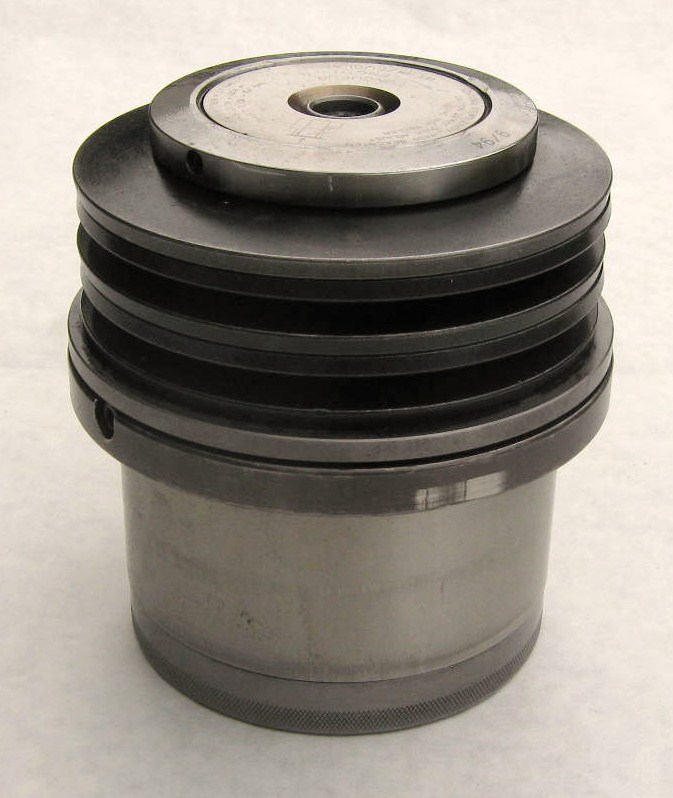

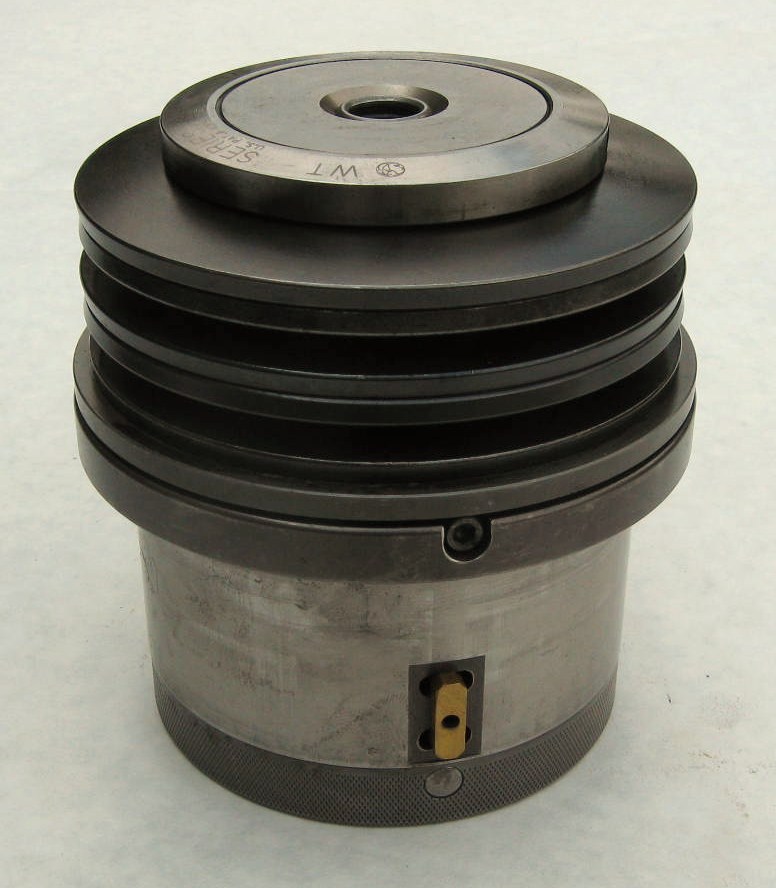

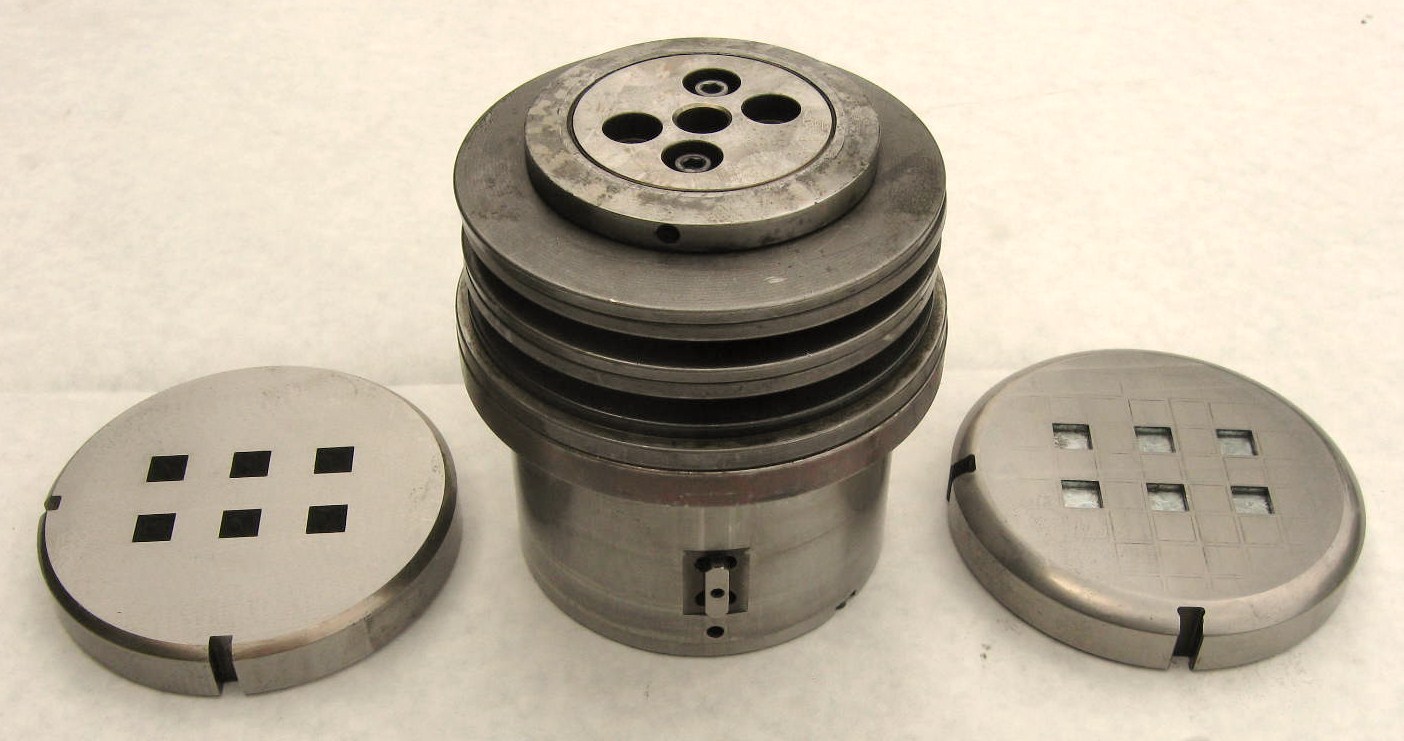

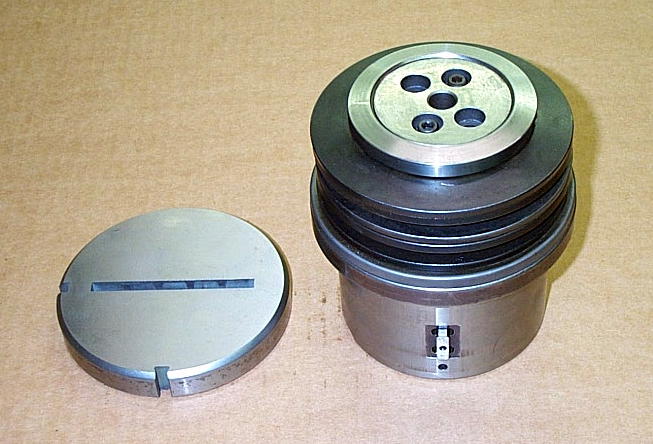

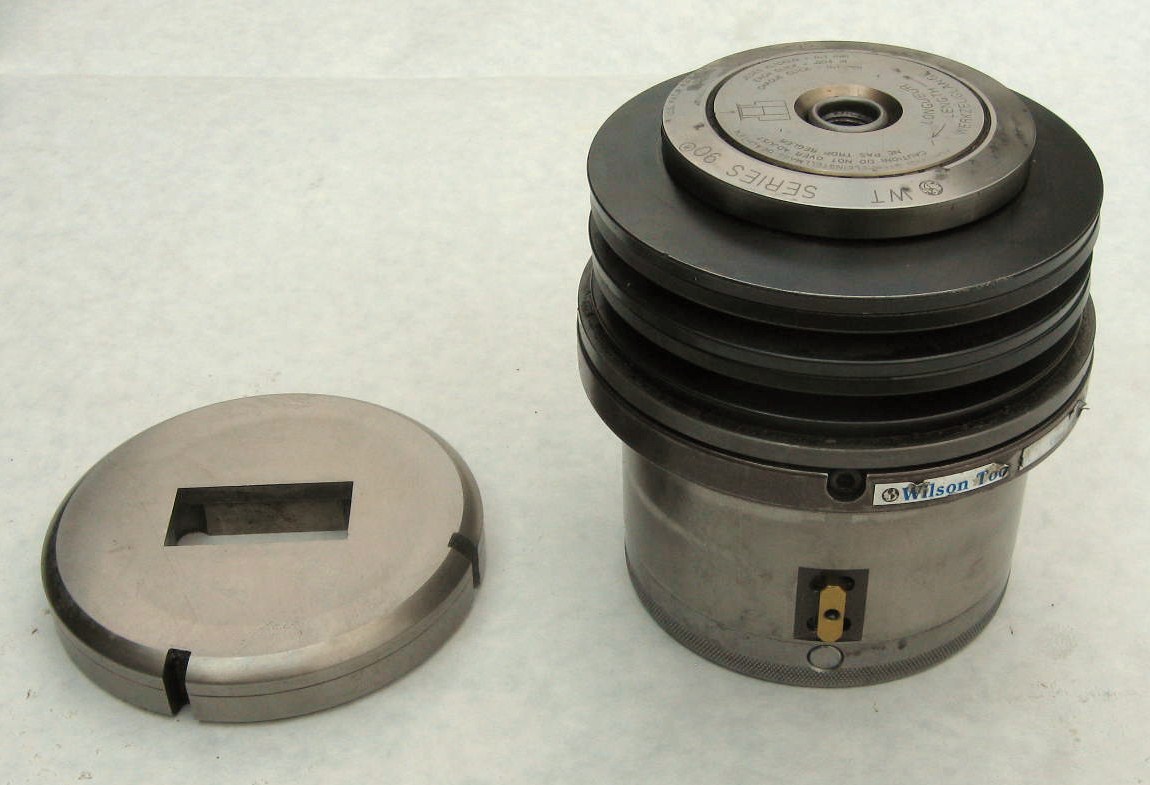

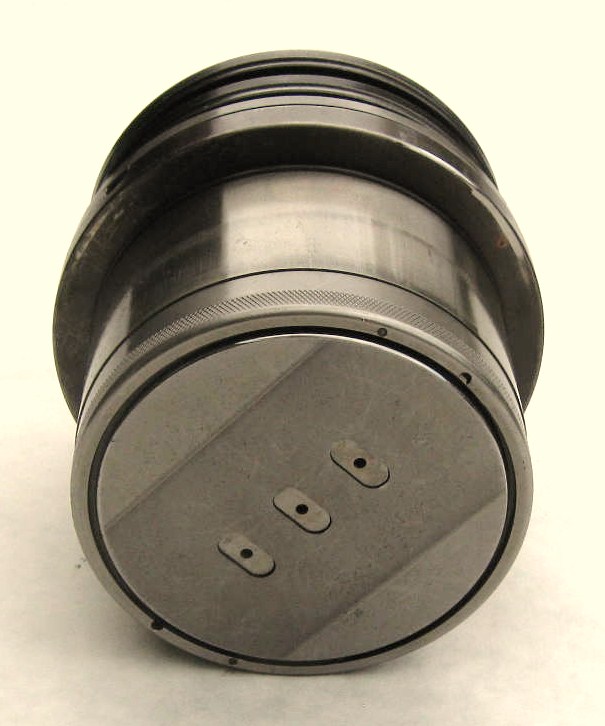

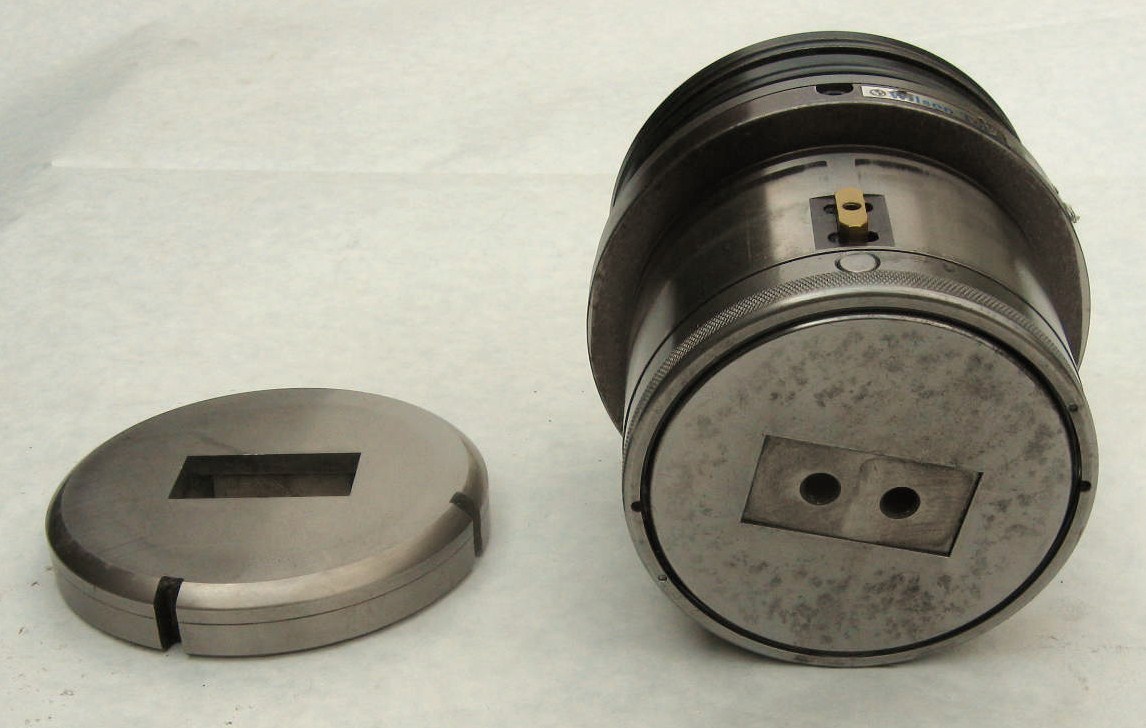

Wilson Series 80 3 1/2 Inch Punch Holder

with .250" x 3.437" Slitting Tool & Stripper-Plate & .012" Die Set

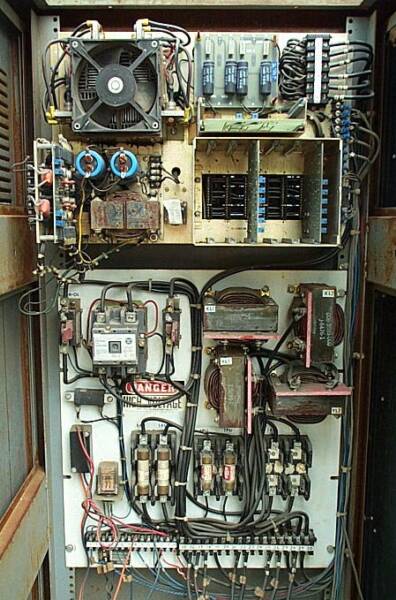

Hyperloop Hyper-Loop

We have Received some Requests for Hyperloop SCR Servo Drive Parts.

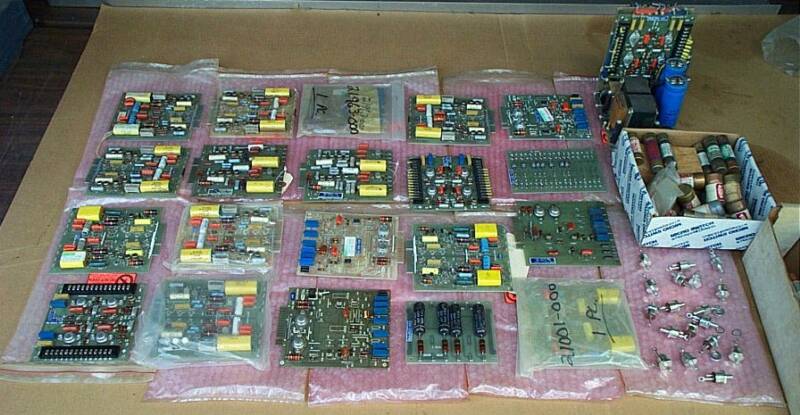

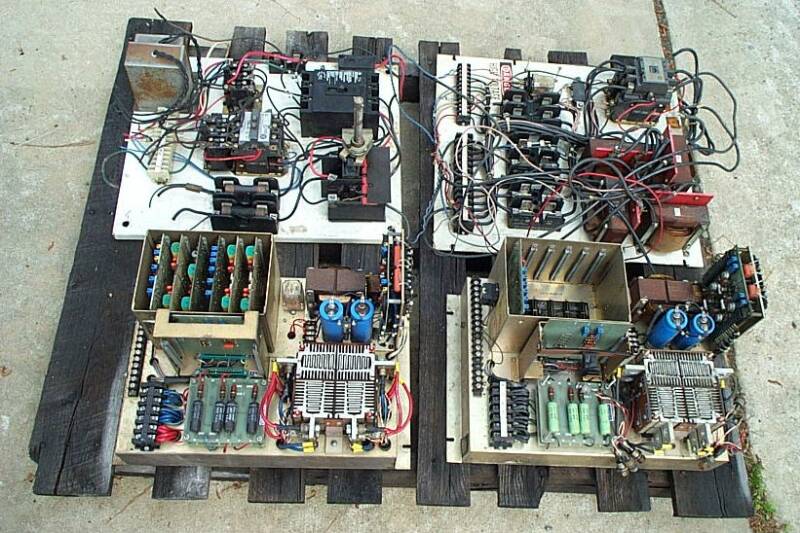

We have Quite a Lot of Old Hyper-Loop Servo Chassis, SCR's,

Circuit Boards, Power Supplies, Books & Manuals, Inductors, Etc.

These were used as the Servo-Drives on Many NC Machines Tools built in the 1970's.

If you still use Hyperloop Servos, Stock Up Now!

We will Sell it All in 1 large Lot CHEAP! Make A Offer!

Call Alan Suda at A & R Machine Tool Co. Phone 708-826-9845

for Information & Pricing on the Following 6 Items;

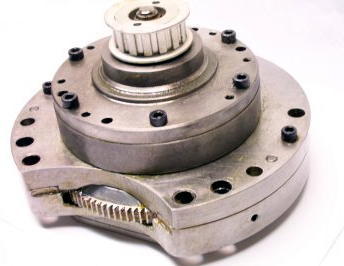

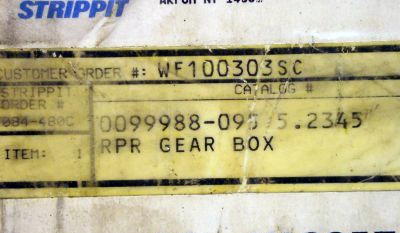

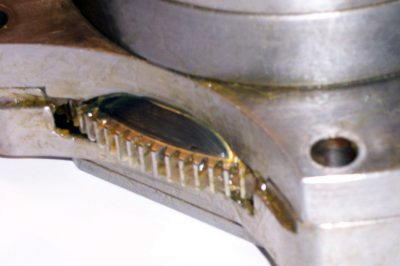

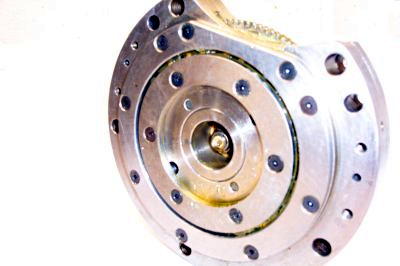

1 --- New Strippit #99988-095 Auto-Index Station Gearbox

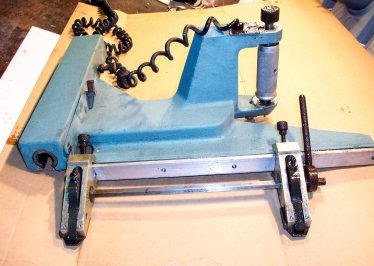

4 --- Duplicator Assembly

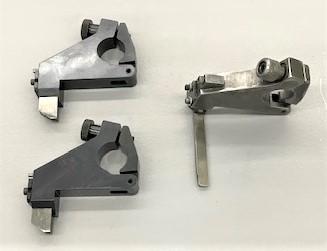

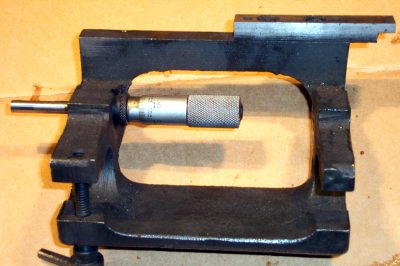

5 --- Microgageing Finger-Stop for Super 30/30 & Custom 18/30 Type Machines

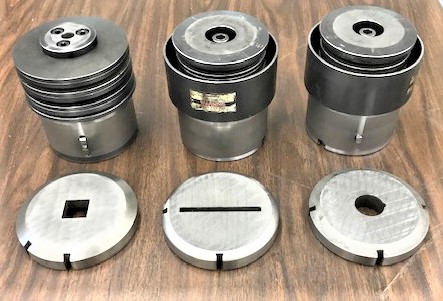

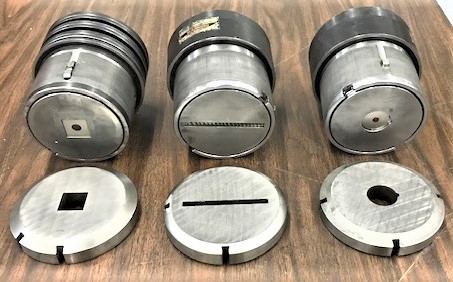

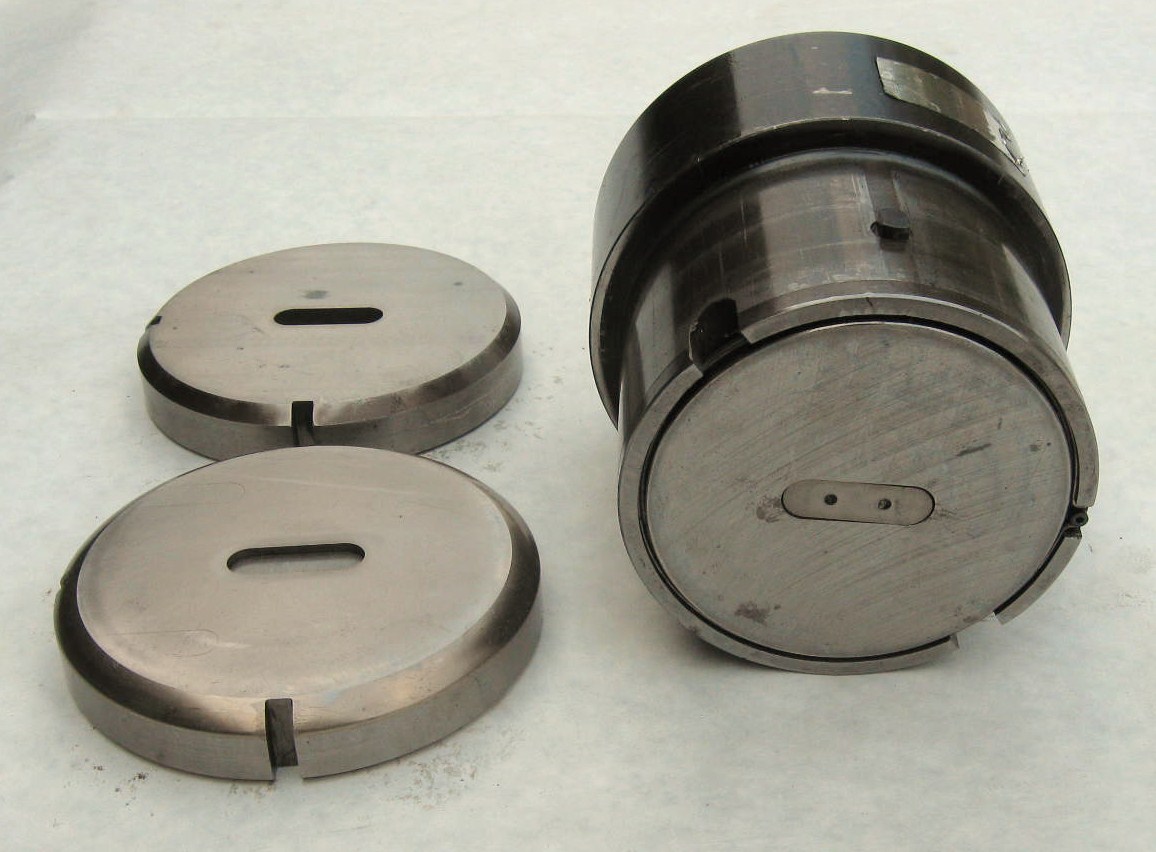

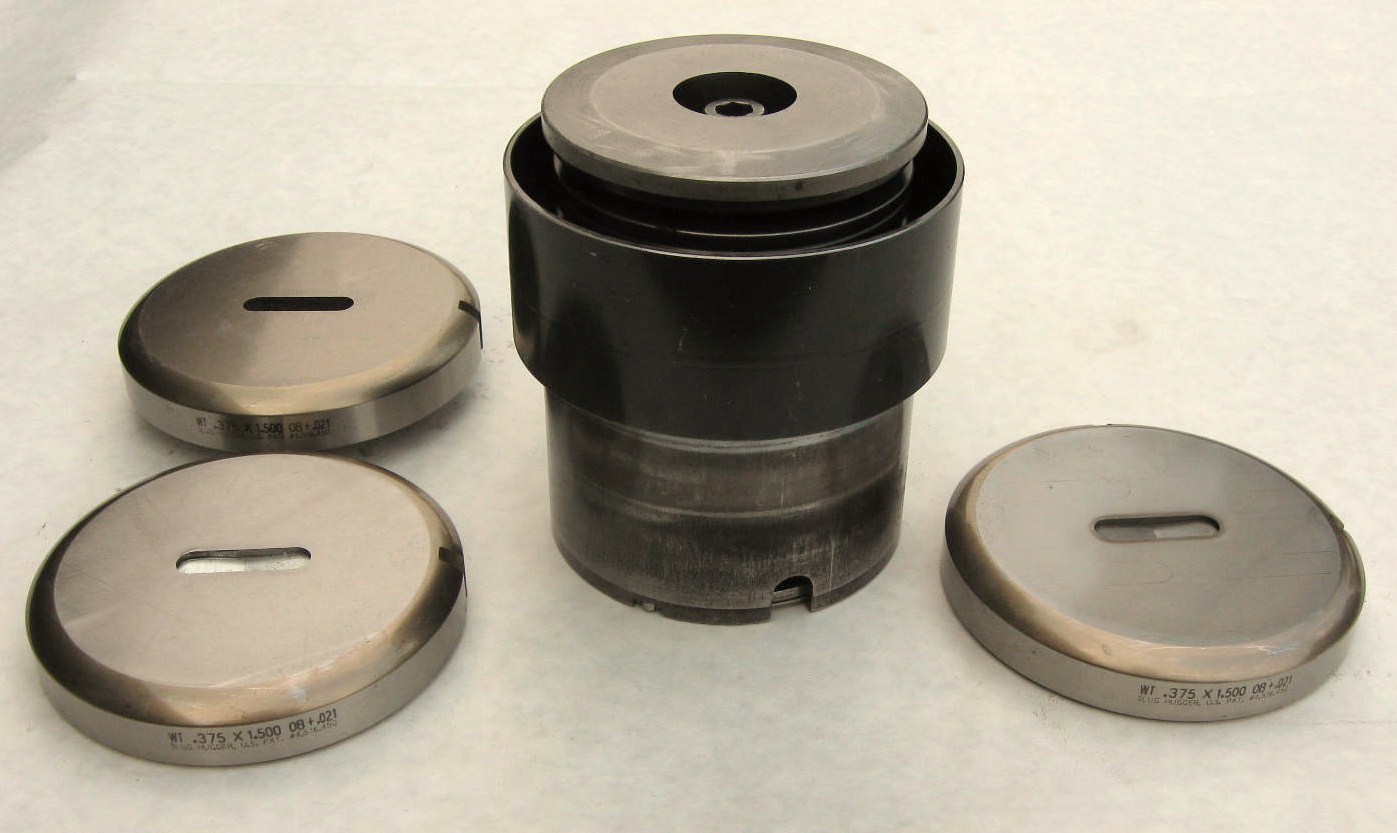

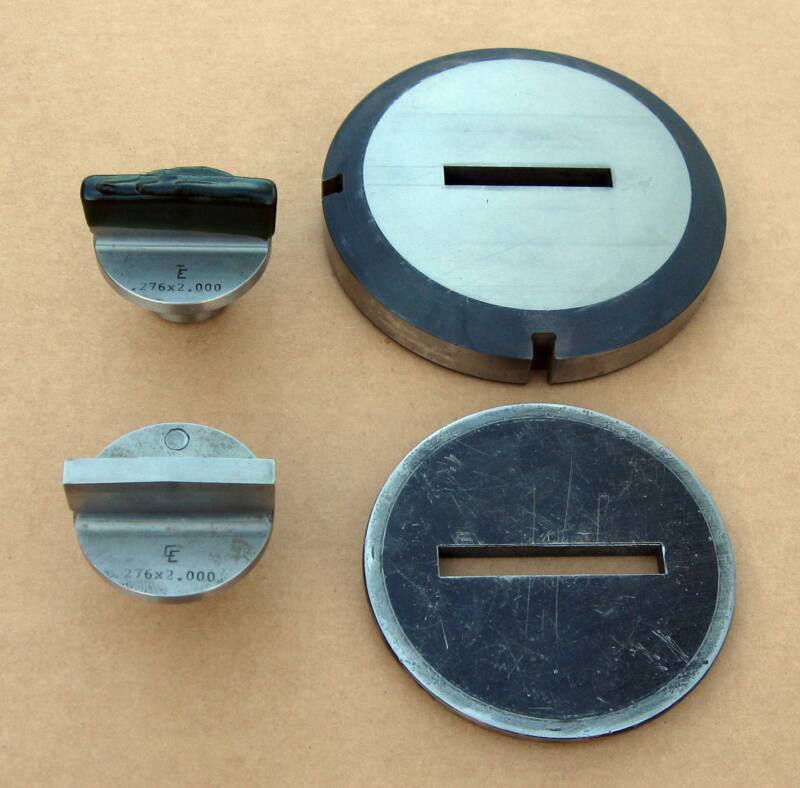

Nice Punch Set for

3 1/2 Inch Punch Holder

.276" x 2.000" Rectangle Punch

and

Stripper-Plate

and

.024" Clearance Die,

and

a New Spare-Punch

that still has the

Green Shipping-Goop on it!

$45.00 for All, as Pictured at Right

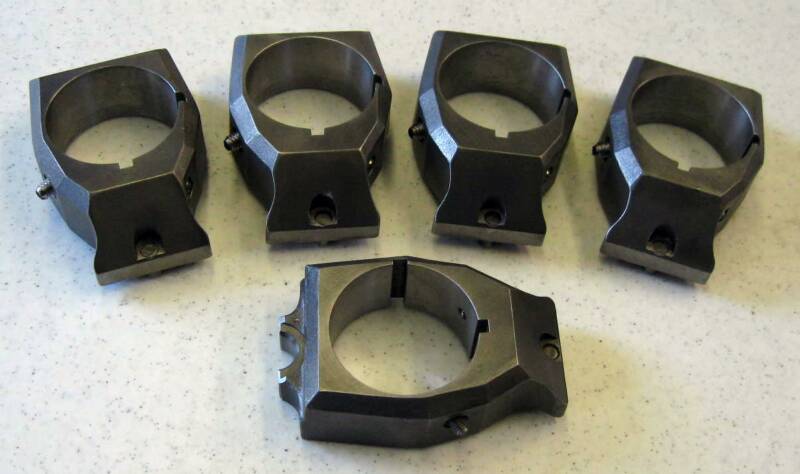

Brand-New Strippit

#83603-000 Standard

0 & 270 Degree Slot Die Holder.

(Everyone else calls these 0 & 90)

These are

The Standard Die Holders

that came in all Strippit Turret Machines for Many Years.

Strippit Gets Over $300.00 each for these! I have only these 5 Brand-New Holders Left for only $150.00 each.

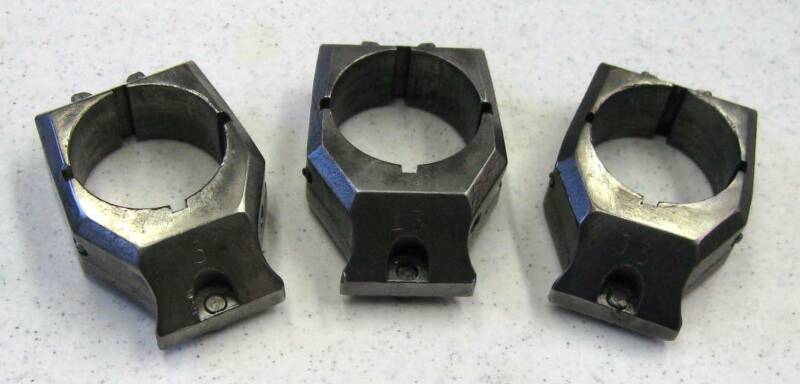

Good Used

0, 90, 180, 270 Degree

4-Way Die Holders

Strippit #91561-000

New-Cost

is Over $300 Each.

We have a few of these left at

$75.00 each

with 2 New

Vlier Pins Installed.

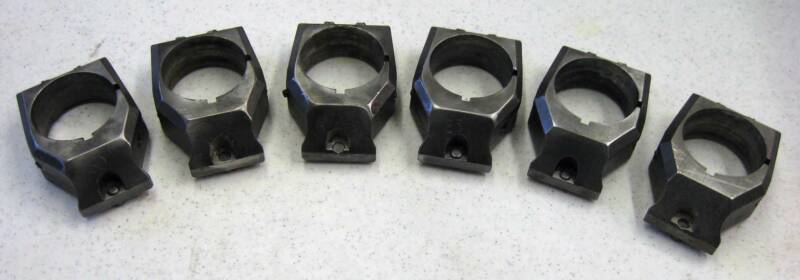

Good-Used Strippit #83603-000 Standard 0 & 270 (0 & 90) Degree Slot Die Holder.

These are The Standard Die Holders that came in all Strippit Turret Machines for Years.

I have Lots of these Holders, and I Sell them 2 Ways.

$35.00 As-Is, Or

$45.00 with 2 Brand-New Vlier Pins Installed that Lock-In the Die.

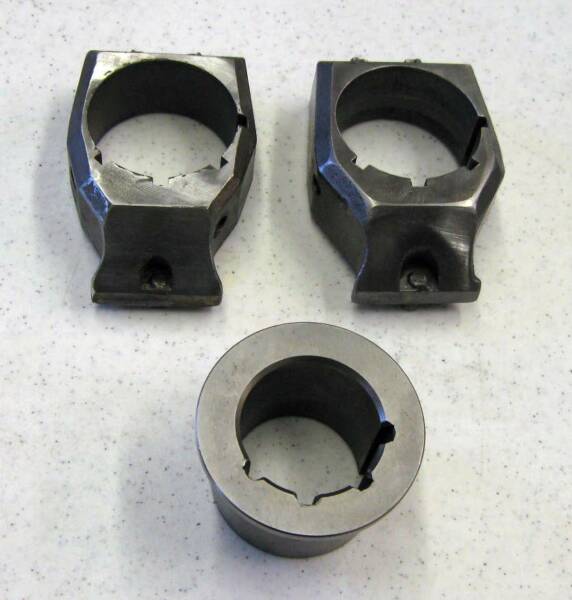

Good Used

0 & 45 & 270 & 315 Degree Die Holders

Strippit #91562-000

New-Cost is Over $300 Each.

But we have a few of these left at

$80.00 each

with 2 New

Vlier Pins Installed.

We also have 1

#100230-200 Matching

Turret Bushing

at $80.00

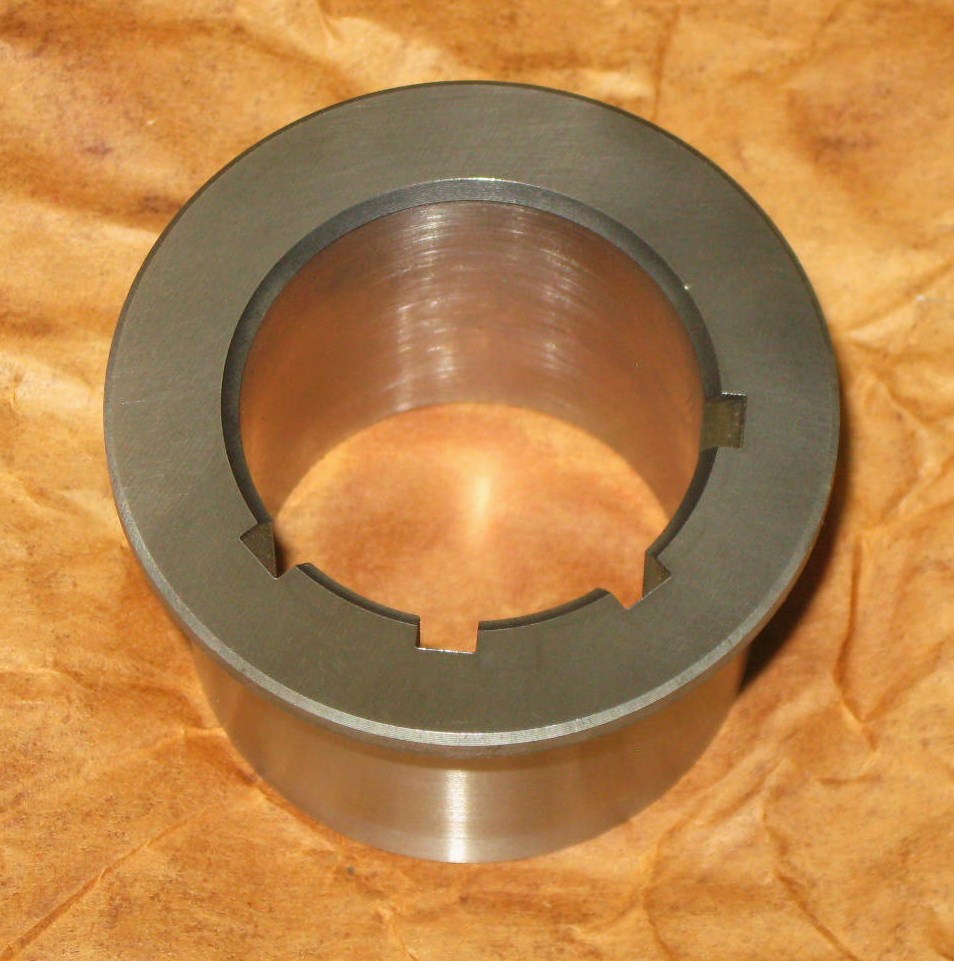

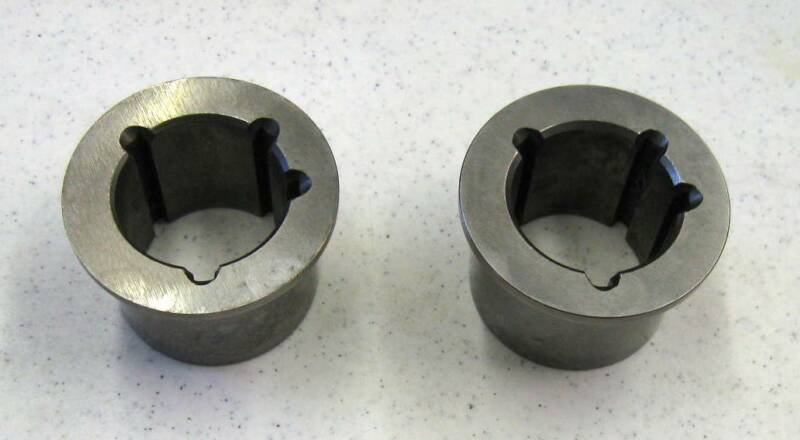

Good Used

0 & 135 & 225 & 270 Degree Bushings.

(In Other Words,

these are 0, 45, 90

Bushings.)

Strippit #100230-300

New-Cost is Over $300 Each.

But we have 2 of these left at

$80.00 each

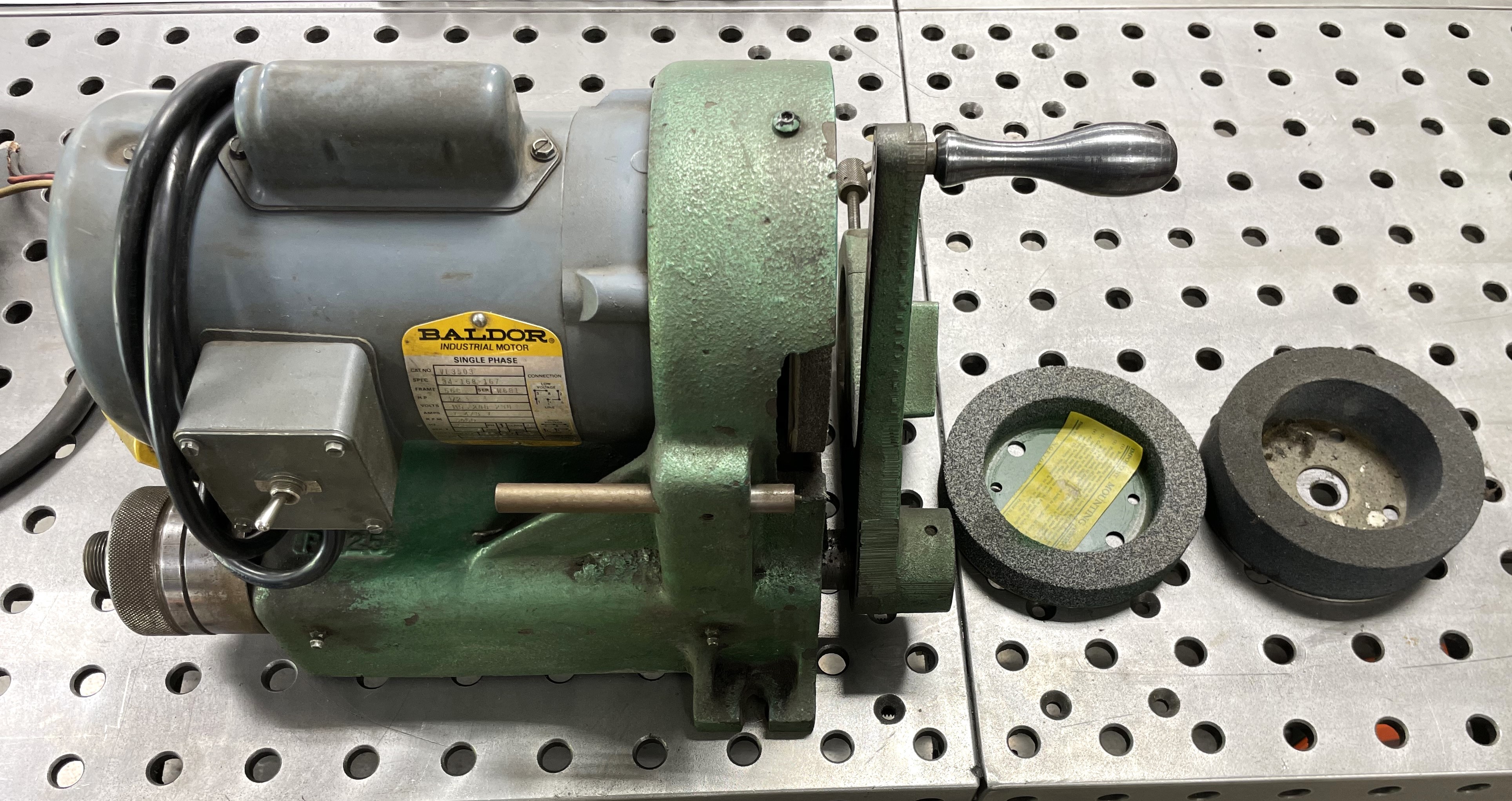

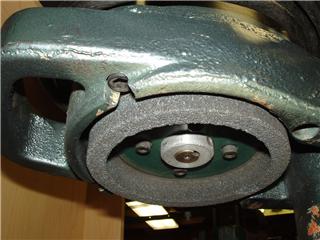

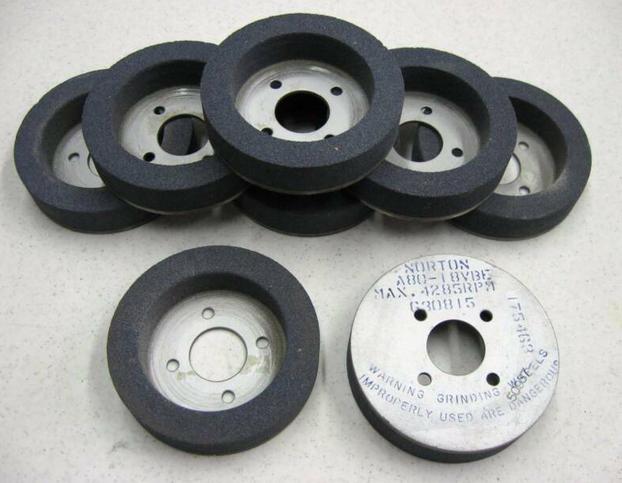

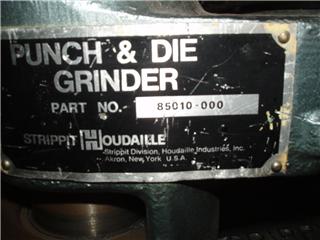

Grinder-Wheels for Strippit Tool Grinder

If you have a Strippit #85010-000 Punch & Die Grinder Machine like Shown Above,

you will need New Grinding Wheels from Time to Time. Unfortunately, Strippit now Sells only Crappy-Imported Wheels that have Less Abrasive-Material than the Original Wheels

and use a Very Poor Binder-Glue, so they are "Soft" and "Wear-Out" Very Fast!

Machine Technologies Now has a Supply of the

Original #12359-000 Made-In-The-USA Grinding Wheels In-Stock!

If you want a

Top-Quality Grinder Wheel for Your Strippit Tool Sharpener Machine,

We are the Only Source! Phone 704-233-5229

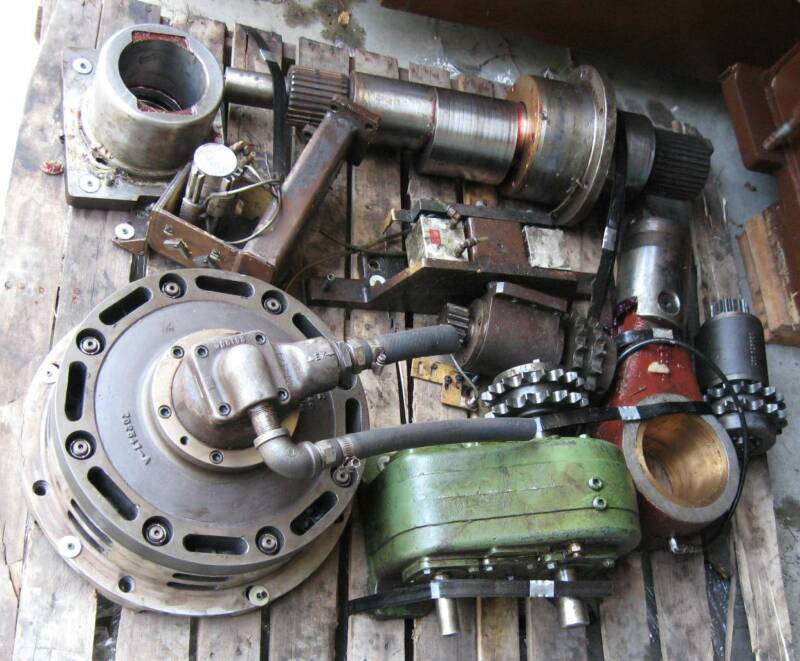

We Stock Thousands of New Machine & Control Repair Parts.

But, From Time to Time,

We Scrap some Machines and so we also have some

"Heavy" Repair Parts from these Used Machines.

Parts like; Crankshafts, Clutches, Brakes, Turret Gearboxes,

Turret Sub-Assemblies, Flywheels, Pitman's, Rams, Ram-Housings,

Bearing Quills, Machined Castings, Etc.

Call us on what you need.

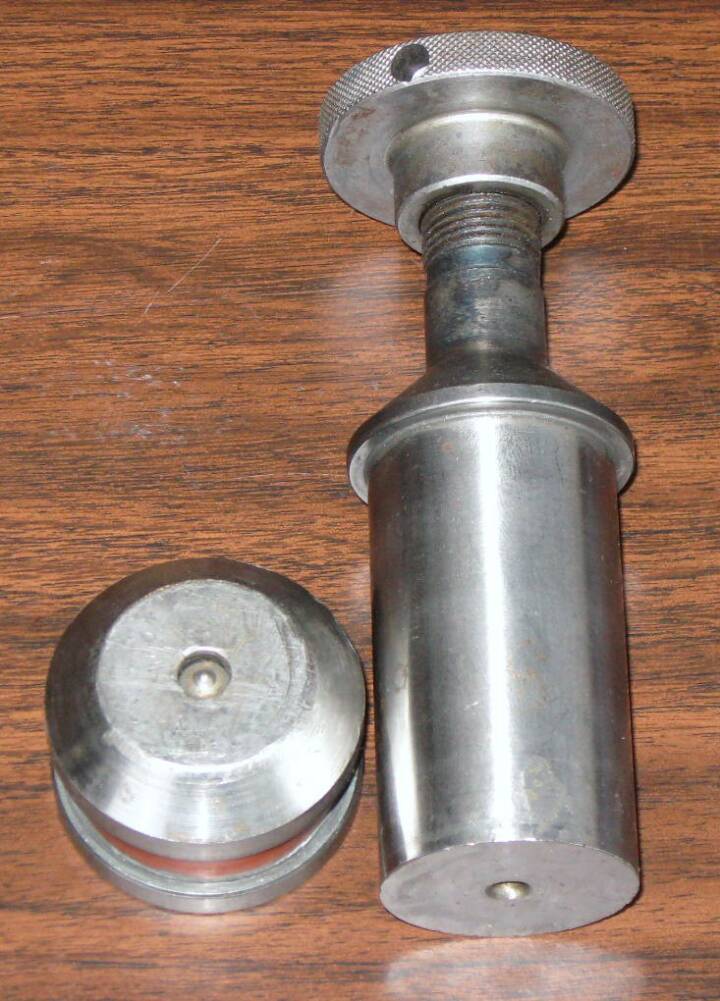

Dimple

Tool

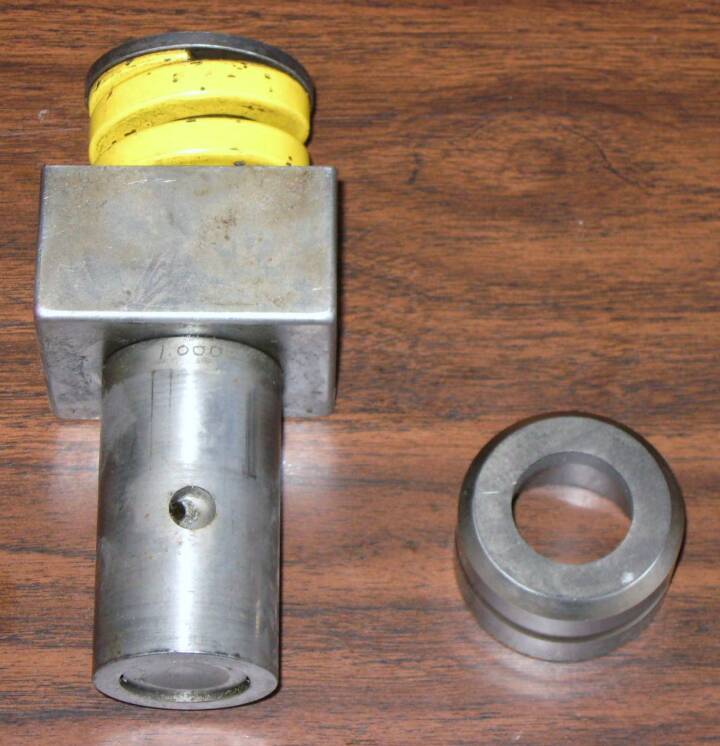

Heavy-Duty

1.000"

Nibble-Tool

and

.008" Die

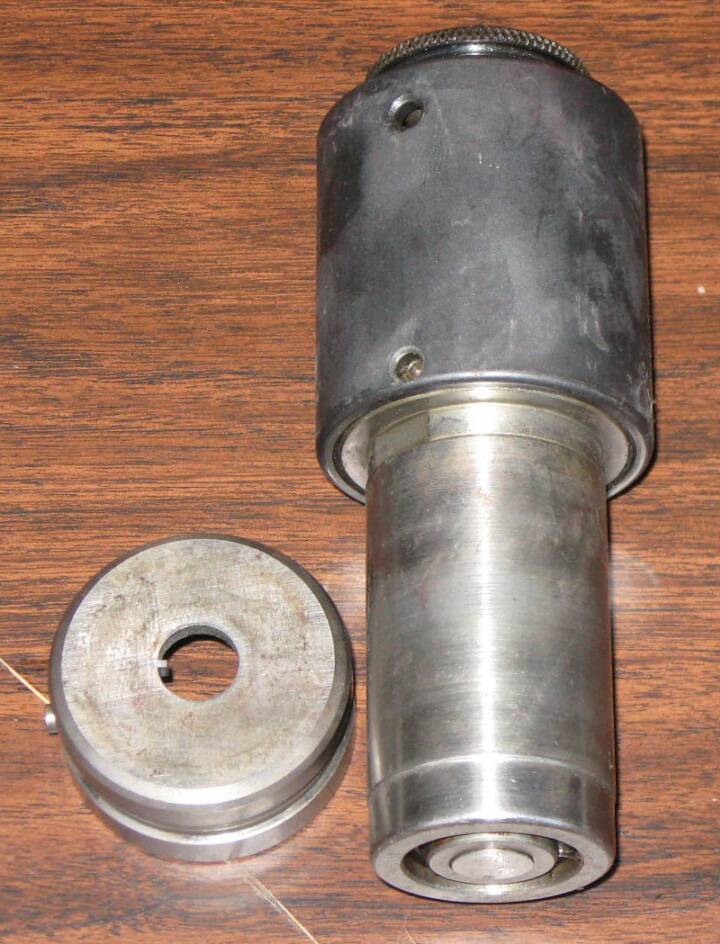

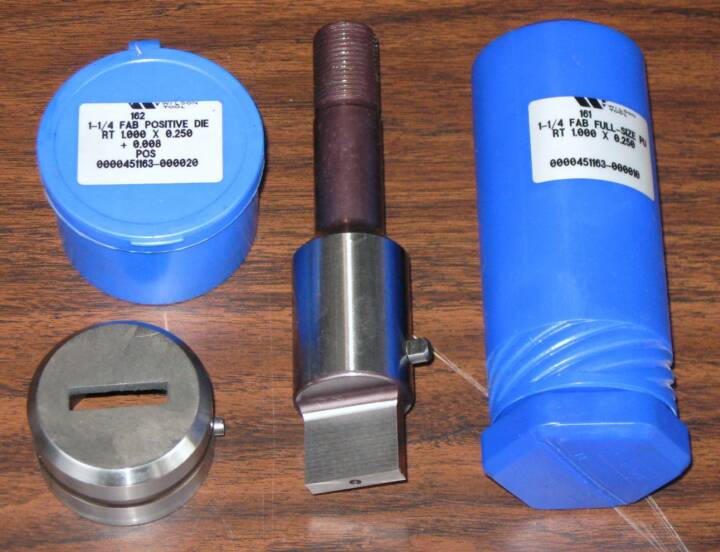

NEW .250" x 1.000" Punch & Two .008" Dies

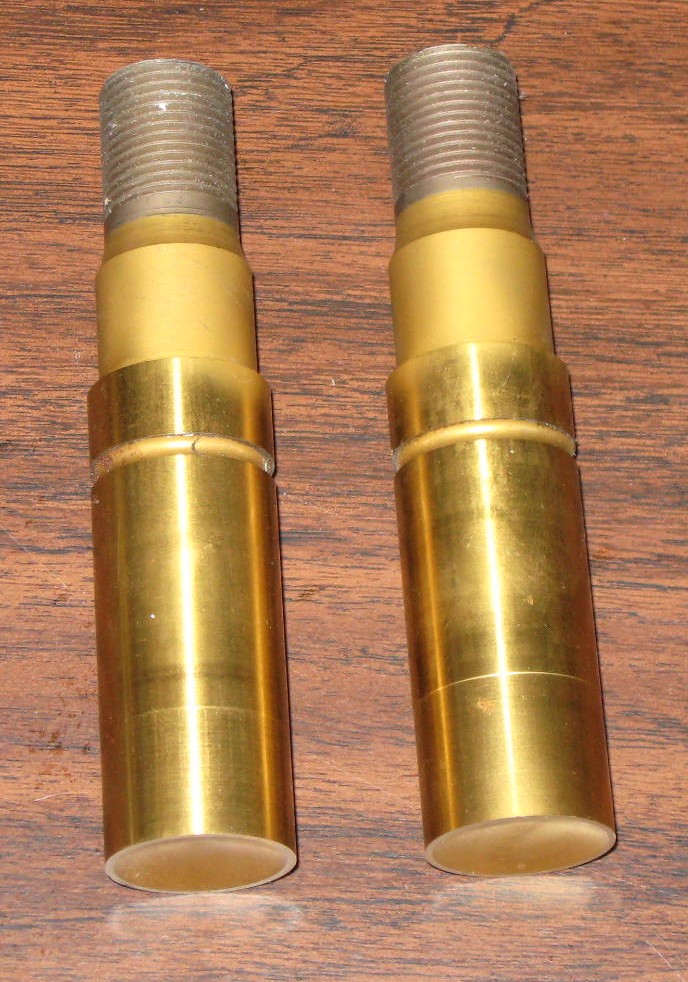

NEW

Heavy-Duty

Tin-Coated

1.000"

Round

Nibble-Tool Punches

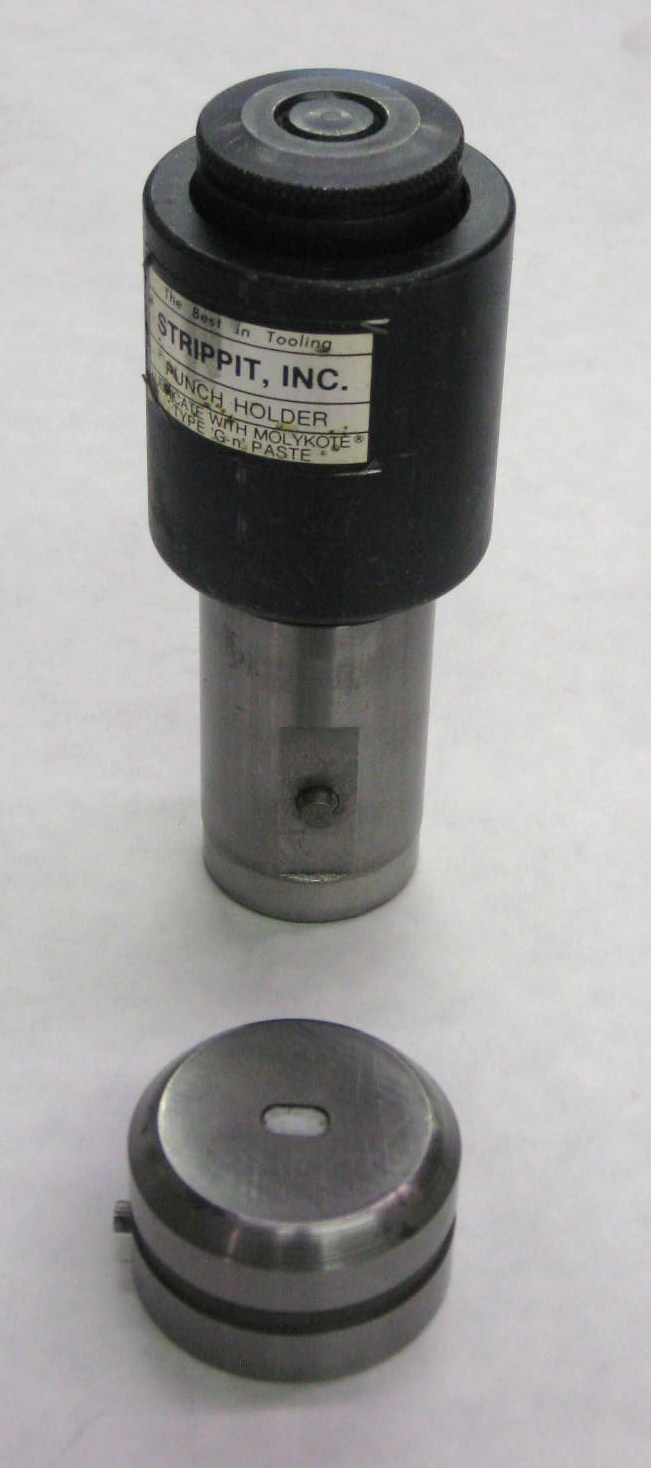

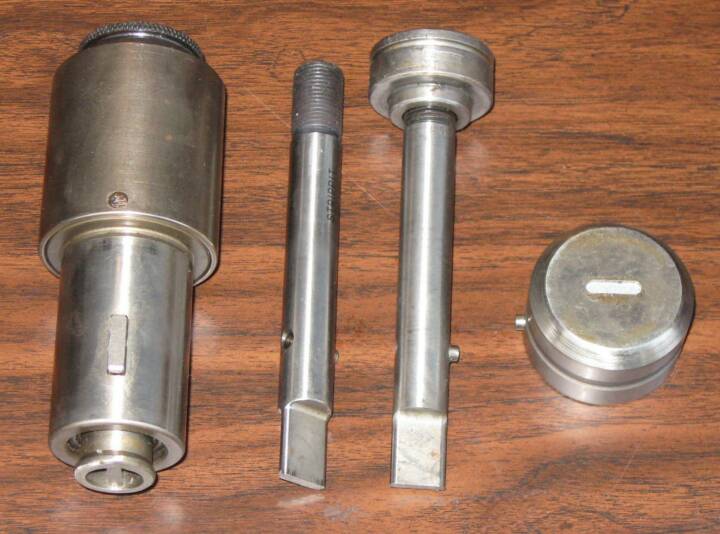

.156 x .625

Ob-Round

Punches

5/8 Drop-In Holder

and

.008" Die

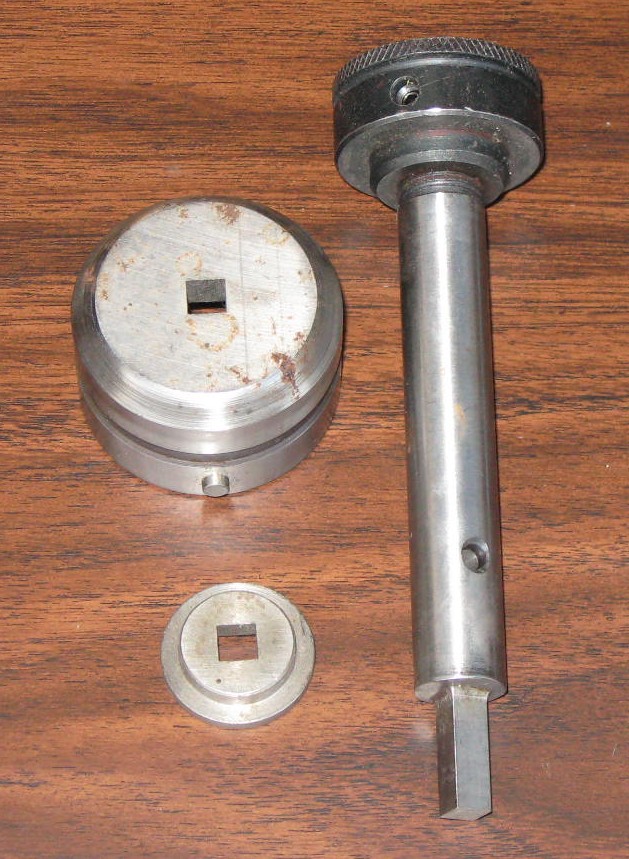

.258" Square Punch

& .008" Die

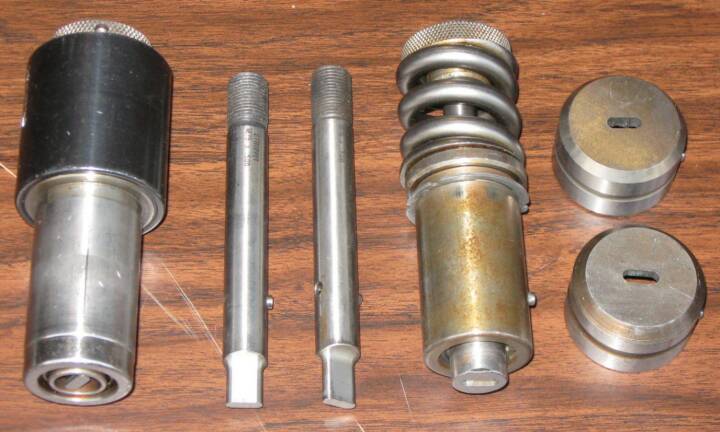

.187 x .500

Ob-Round

Punches

2-Holders

and 4

.006" Dies

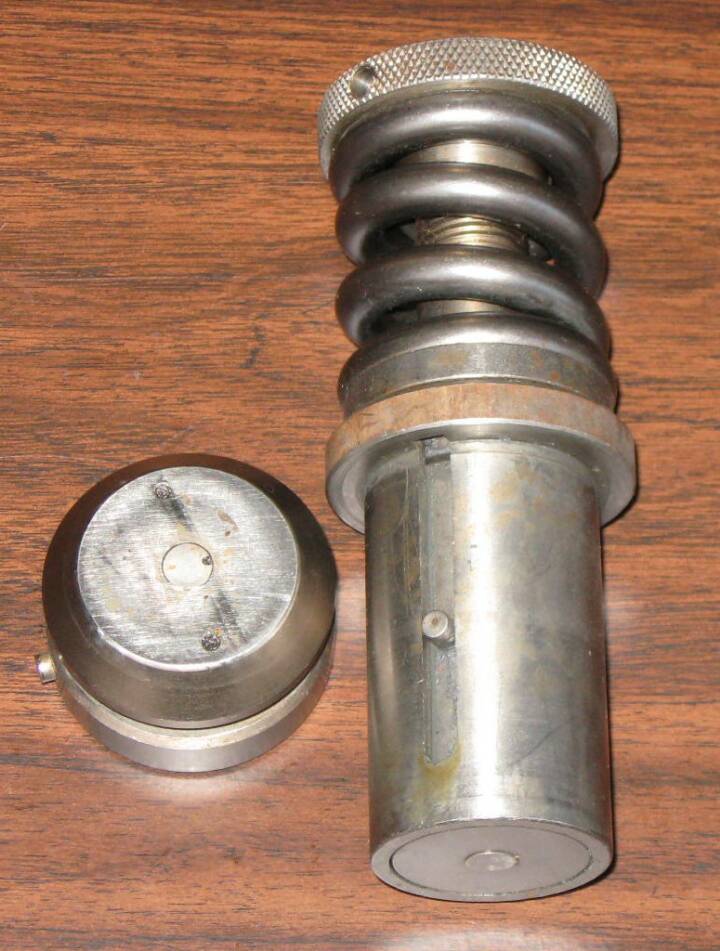

.320" Knock-Out Punch

& .006" Die

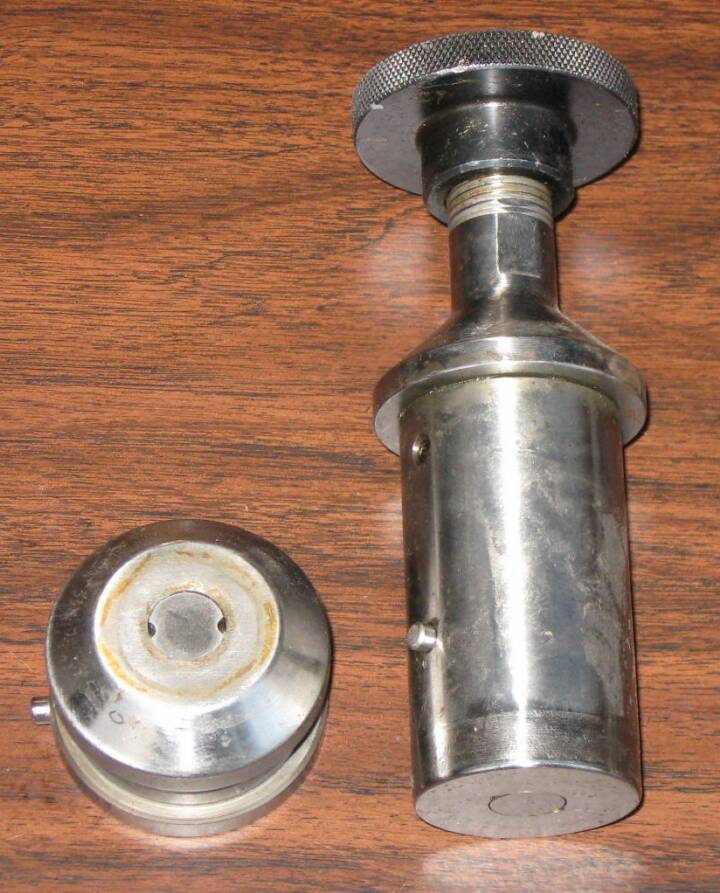

.500" Knock-Out Punch

& Die

.500" Knock-Out Punch

& Die

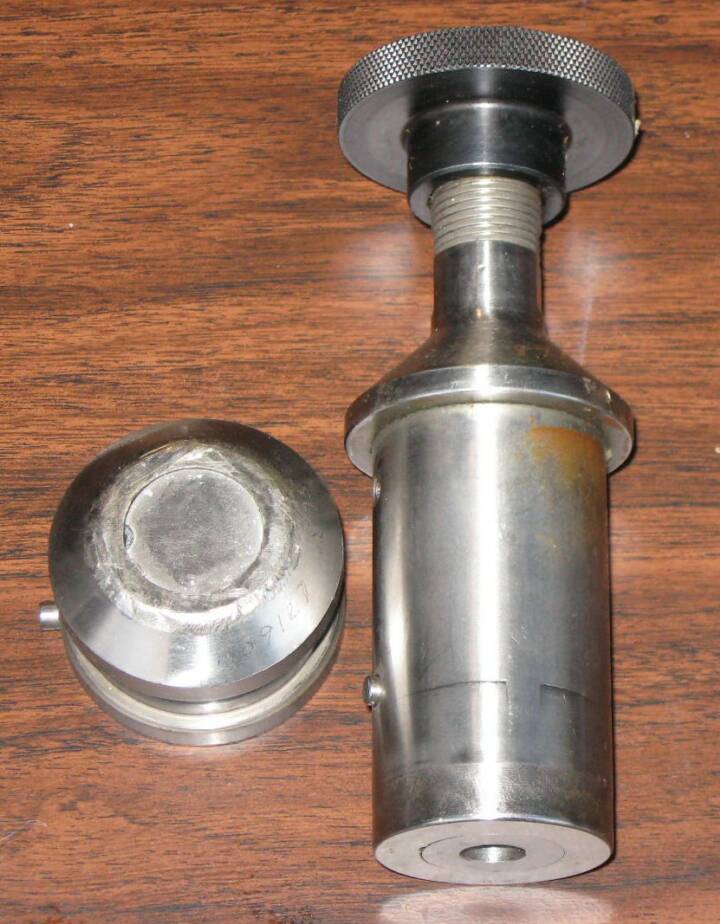

.875" Knock-Out Punch

& Die

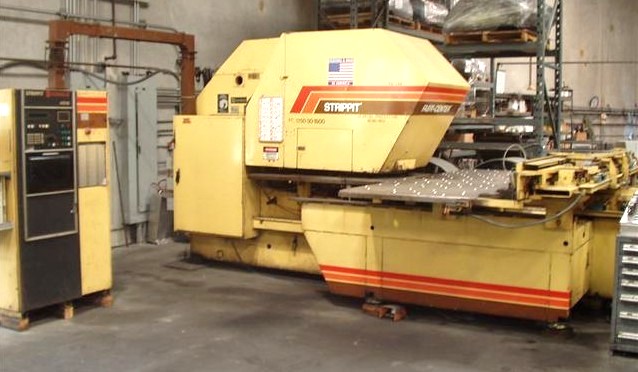

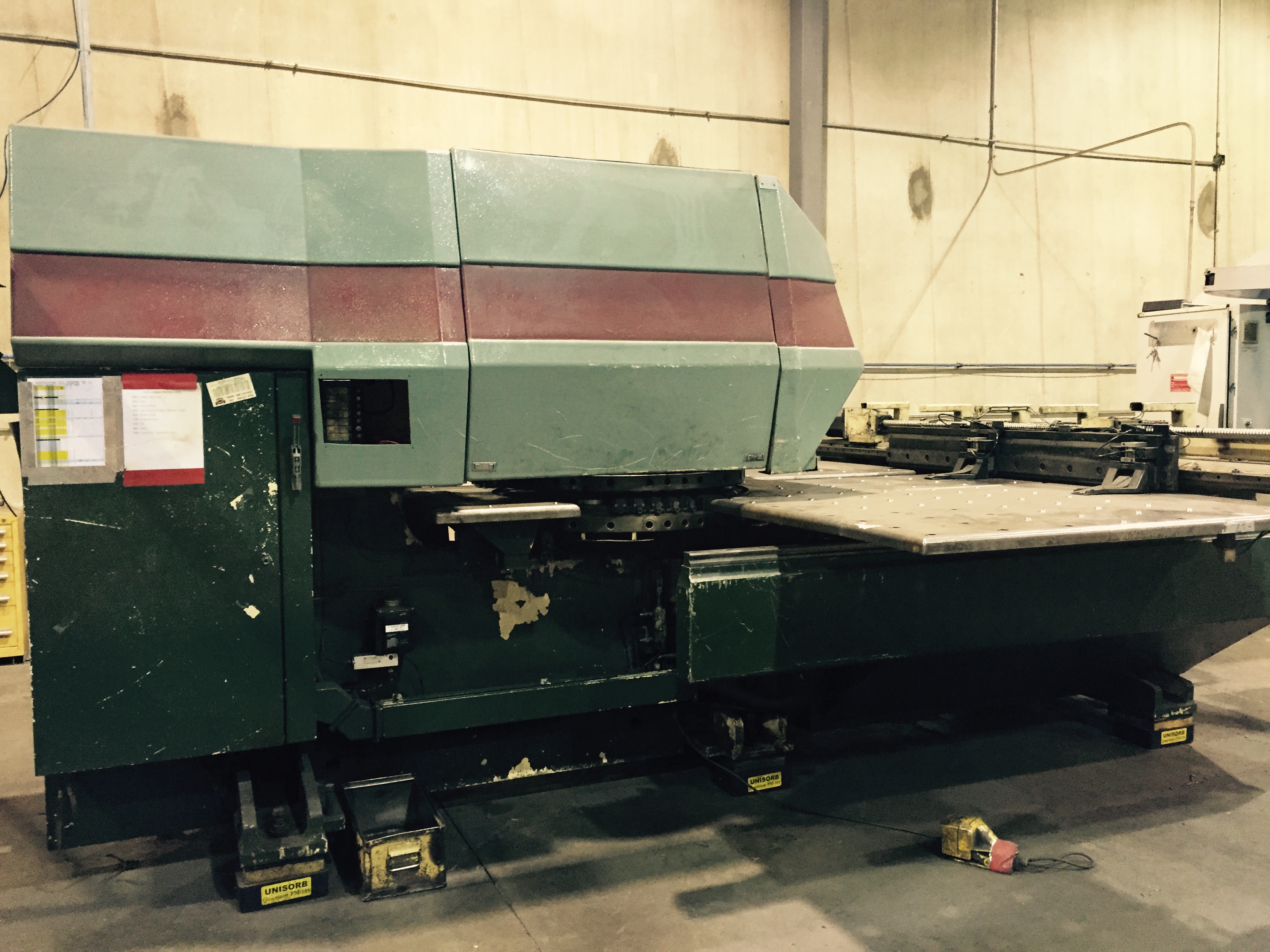

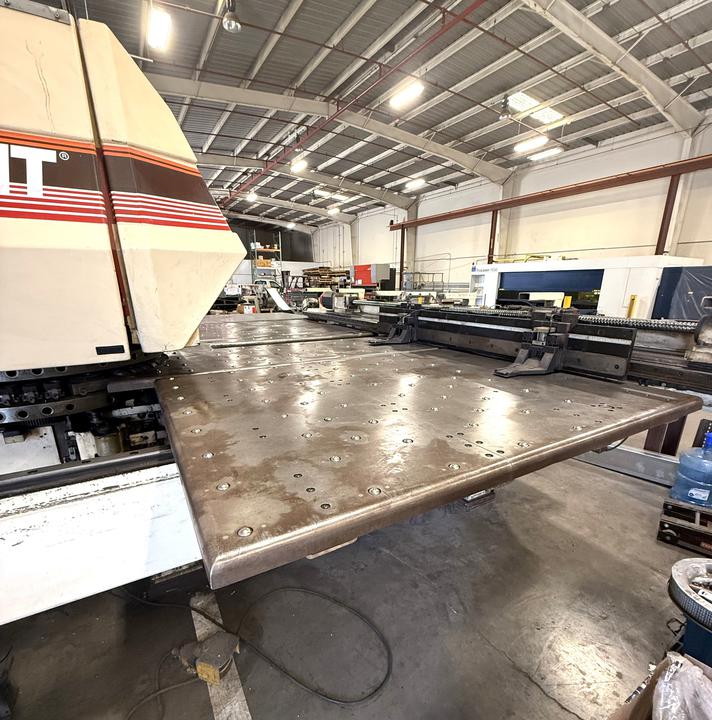

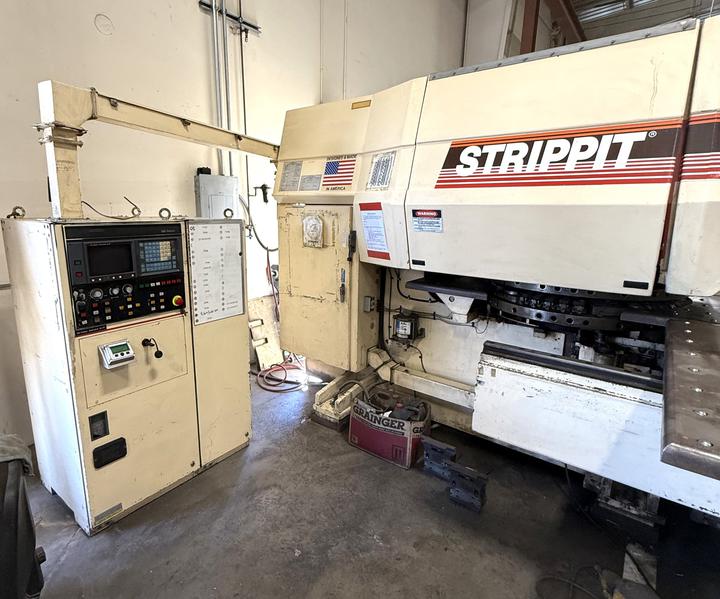

Strippit FC1250/30/1500

CNC Turret Punch Machine For-Sale

Machine Technologies is pleased to offer this Strippit FC1250/30/1500 which we Installed in a Southern California Shop, and has been Exceptionally Well Maintained by a Smart Customer. A Brief Summery of its Specifications;

--- No Special Foundation is Needed! Has Steel-Plates to Lag-Down to Your Floor.

--- 30 Ton Punching-Capacity, up to 3/8 Inch Steel.

--- 20 Station Turret, 1 --- 2"x2" Notch-Station, 3 --- 3 1/2" & 16 --- 1 1/4" Stations.

--- Up to 2000 inch per minute table movement speed.

--- 180 Punches per minute on 1 inch centerlines.

--- Contour-Nibbles Large Circles, Curves, and Angles at 390 punches per minute!

--- Sheet Size is 50" x 60" , can handle Sheets up to 60" x 120"

with Progressive-Move & Short-Workclamps.

--- Control is HECC80/1 with 24K of Memory, Interfaced to a P.C. Computer

,which is Included, for Downloading Part-Program Files.

--- Control Alphanumeric Readout Display shows X & Y Axis Table-Positions,

Turret-Position, Part-Program Code, Normal & Abnormal Machine Status.
